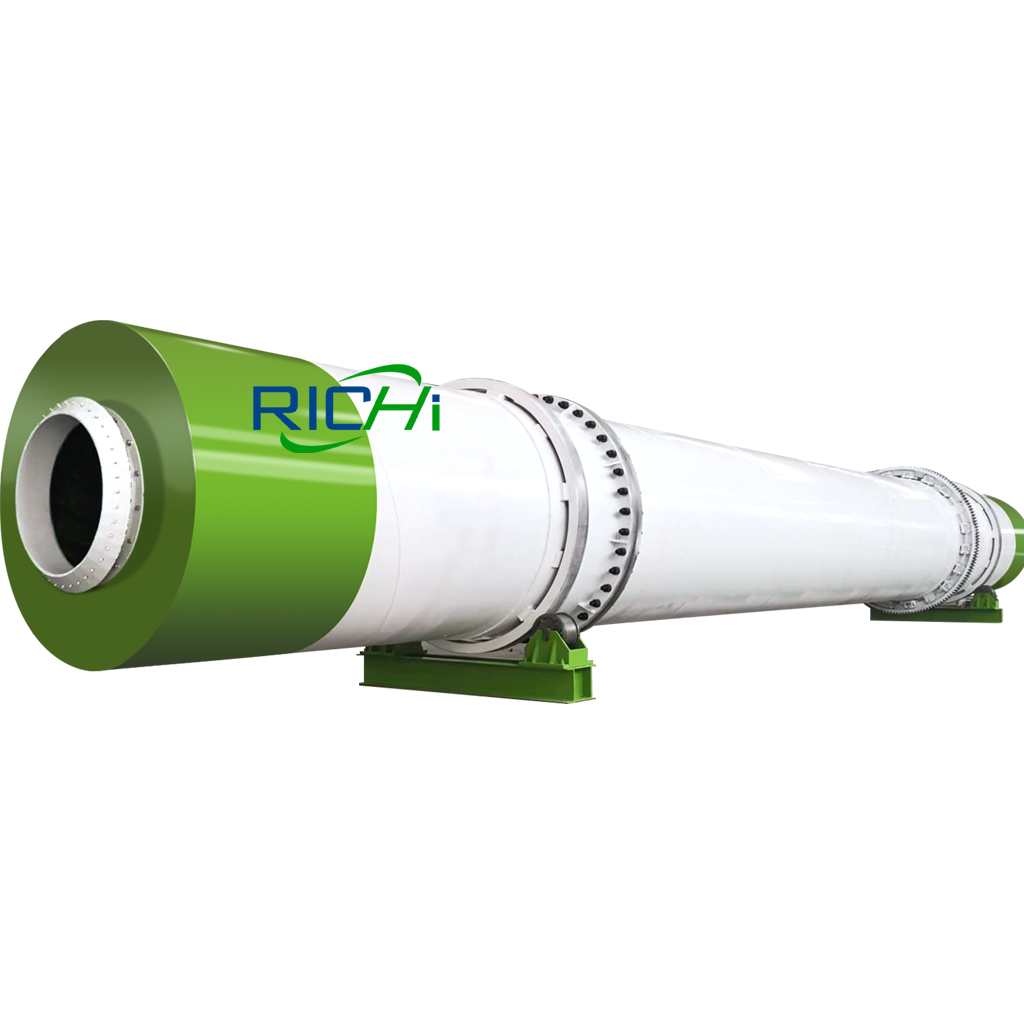

Sawdust Drying Machine

  • Brand Name: RICHI Sawdust Dryer Machine
  • Model: ф1200*120000, ф1500*150000, ф1800*180000, ф2400*100000, ф2400*100000*3
  • Application: Applicable to low-temperature continuous drying material in large quantity, such as sawdust, wood chips, grass, dregs and etc.
sawdust dryer for sale

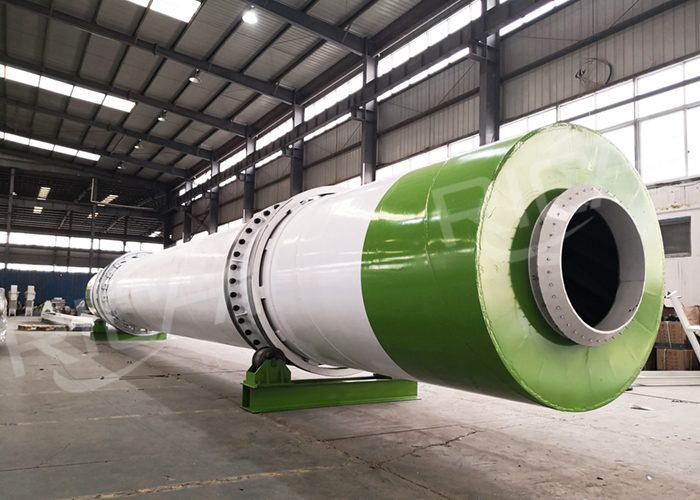

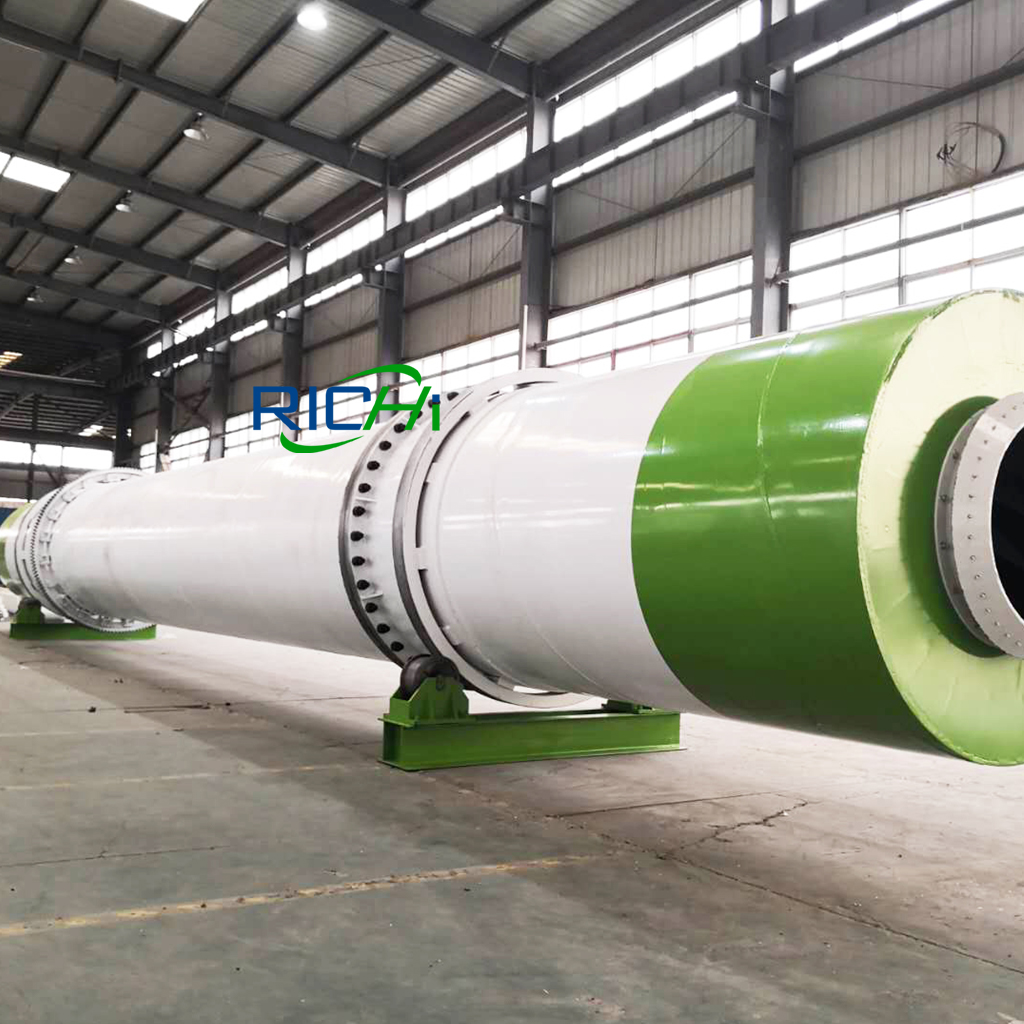

Sawdust Dryer For Sale

Sawdust dryer machine is a kind of drying machine for wood sawdust, which is widely used in wood pellet production lines or biomass pellet production lines. Divided into direct heat transfer drum dryer machine and indirect heat transfer drum dryer machine.

Mainly used for the drying of raw materials, such as wood chips, wood sawdust, or other biomass raw materials.

RICHI wood sawdust drying machine has a reasonable structure, excellent production, high output, low energy consumption, and convenient operation.

RICHI Sawdust Dryer Machine

The sawdust drying machine is a rotating cylinder slightly inclined to the horizontal. The material is added from the higher end, and as the cylinder rotates, the material moves to the lower end under the action of gravity. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end.

A lifting board is installed on the inner wall of the sawdust drying machine cylinder. Its function is to pick up and scatter the materials to increase the contact surface between the materials and the airflow, so as to increase the drying rate and promote the advancement of the materials. The heating medium is generally divided into hot air, flue gas and so on.

  1. A new type of multi-combined material lifting device is adopted, which overcomes the “wind tunnel” phenomenon of traditional dryers and has high thermal efficiency.

  2. The transmission gears adopt pin-changeable gears instead of traditional cast steel gears, saving cost and investment.

  3. The production capacity is larger and can be operated continuously.

  4. It has a wide range of applications, it can be used to dry granular materials, and it is also very beneficial for those materials with high adhesion.

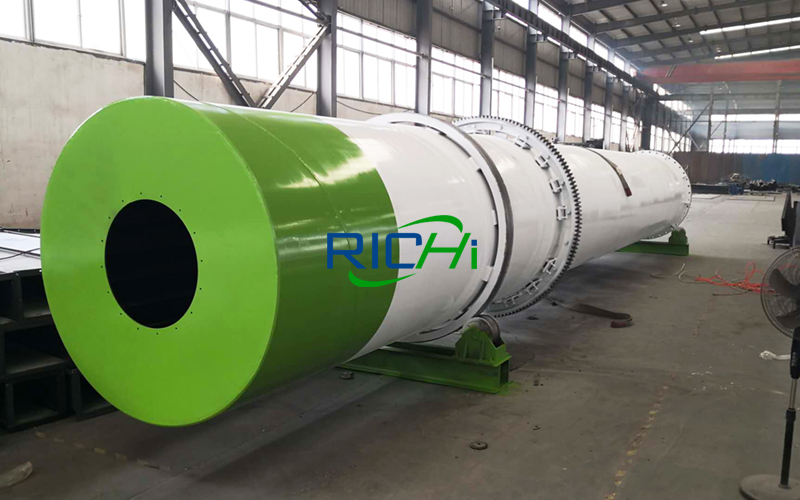

sawdust dryer machine

Wood Sawdust Dryer Machine Technical Parameters

Sawdust Drying Machine Model Cyclone
ф1200*120000 ф800*2
ф1500*150000 ф800*2
ф1800*180000 ф1000*2
ф2400*100000 ф1000*2
ф2400*100000*3 ф1000*2

Wood Sawdust Drying Machine Running in Wood Pellet Line

Sawdust Drying Machine Manufacturer

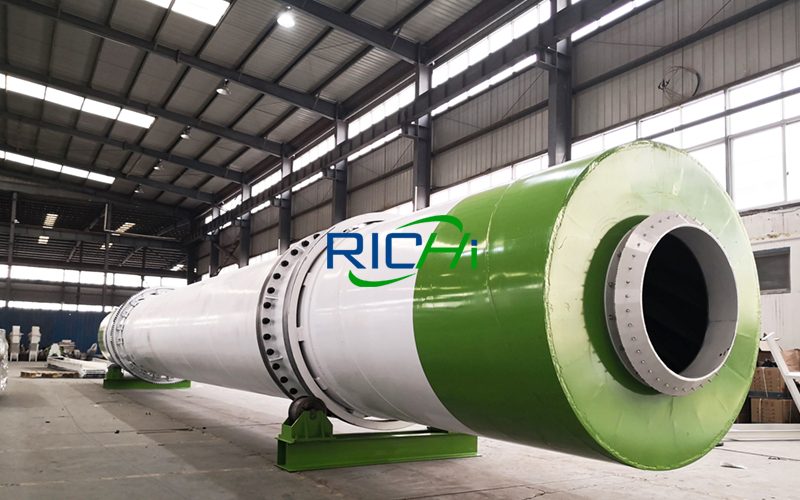

wood sawdust dryer machine

Sawdust Drying Machine

RICHI sawdust drying machine is more suitable for drying feed ingredients, biomass products, wood sawdust, wood chips, etc

sawdust dryer customization services

RICHI Customization Services

RICHI provide equipment production and installation, as well as design customization services for complete pellet production lines

high quality steel

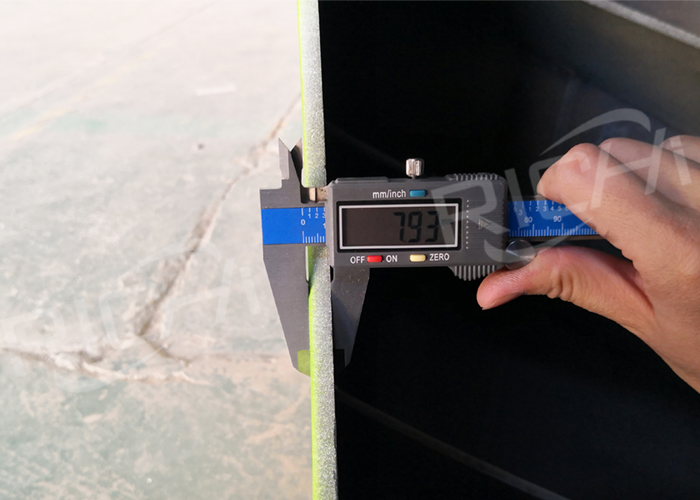

High Specification Steel

Compared with other manufacturers, RICHI insists on using thicker steel to improve product quality

lifting board

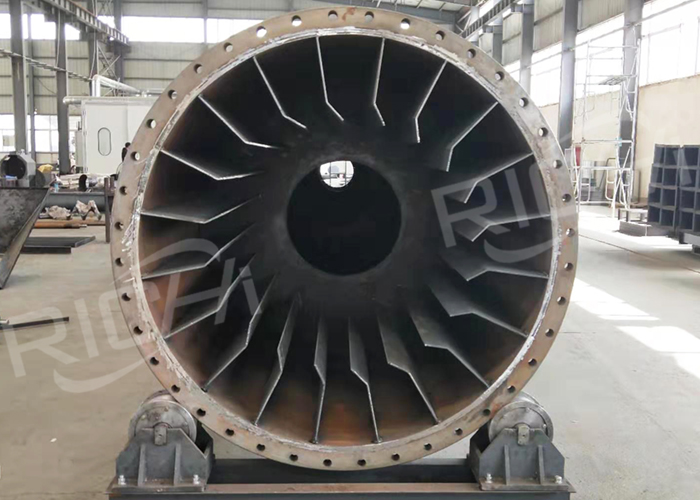

Lifting Board

Dense lifting plate accelerates the diffusion of raw materials and improves drying efficiency

optimized lifting board layout

Optimized Lifting Board Layout

We optimized the arrangement of the lifting plate and improved the drying efficiency of the sawdust dryer machine

high-quality accessories

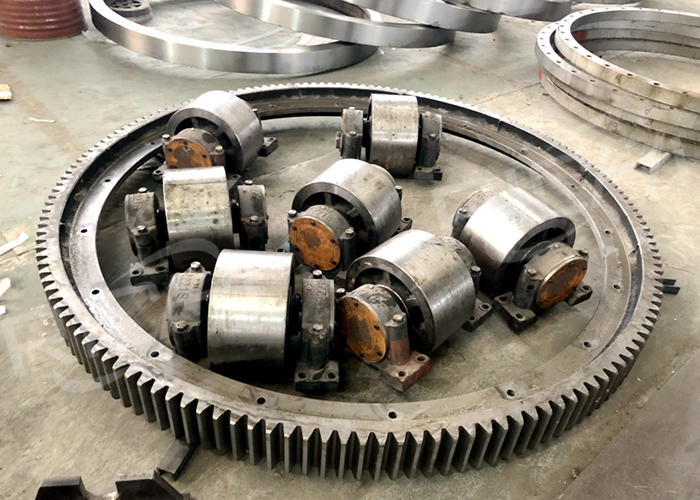

High Quality Accessories

RICHI insists on using high-quality accessories to improve product stability, reduce user maintenance costs and use risks

What is sawdust drying machine?

wood sawdust drying machine for sale

Sawdust drying machine is a special equipment designed and manufactured for the drying of wood chips, wood sawdust, wood flour, biomass materials, and other materials. It is a kind of tumble dryer machine, generally in the form of three channels, with a special design inside the dryer the lifting plate, guide plate, special-shaped pirate and so on.

sawdust dryer machine sale

What are the advantages of sawdust dryer machine?

The sawdust dryer machine designed and produced with a multi-combination lifting device has made many technological innovations in the lifting device system. It adopts a new multi-combination lifting device to overcome the “wind tunnel” phenomenon of traditional dryers. Higher thermal efficiency.

The transmission gears adopt pin-changeable gears instead of traditional cast steel gears, which saves cost and investment, and greatly reduces maintenance costs and time.

The use of a centralized control system can realize the microcomputer central monitoring and management of large enterprises.

  • Larger production capacity and continuous operation;

  • Simple structure and convenient operation;

  • Fewer failures and low maintenance costs;

  • It has a wide range of applications, it can be used to dry pellet materials, and it is also very beneficial for those with high adhesion;

  • The operation flexibility is large, and the output of the product is allowed to have a large fluctuation range in production, which will not affect the quality of the product;

  • Easy to clean.

How to dry wood sawdust?

sawdust dryer machine manufacturer

The sawdust drying machine is a rotating cylinder slightly inclined to the horizontal.

The dry and wet material is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The inclination of the feeding pipe should be greater than the natural inclination of the material so that the material can flow into the dryer smoothly.

The material is added from the higher end, and the heat carrier enters from the lower end, and it comes into contact with the material in countercurrent, and there is also the heat carrier and the material flow into the cylinder side by side. With the rotation of the sawdust dryer machine, the material moves to the lower end by gravity. When the wet material moves forward in the sawdust dryer machine cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end.

A copy board is installed on the inner wall of the sawdust drying machine. Its function is to pick up and scatter the material to increase the contact surface between the material and the airflow, so as to increase the drying rate and promote the advancement of the material. The heating medium is generally divided into hot air, flue gas and so on. After the heating medium passes through the sawdust drying machine, a cyclone dust collector is generally required to capture the materials carried in the gas. If it is necessary to further reduce the dust content of the exhaust gas, it should be discharged after passing through a bag filter or a wet dust collector.
