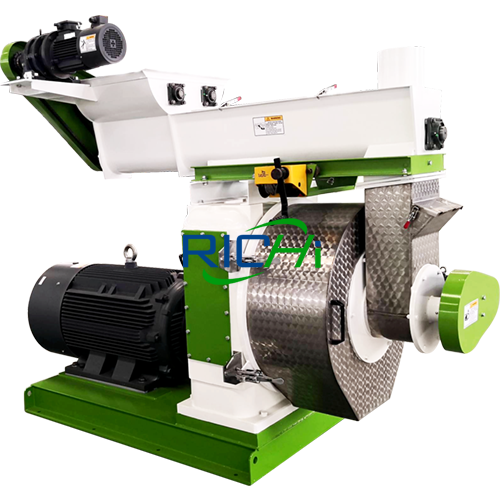

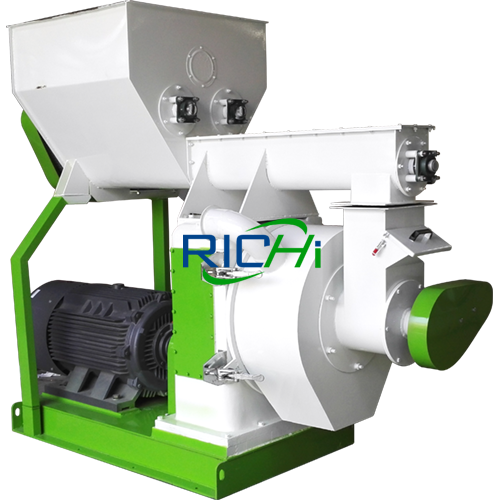

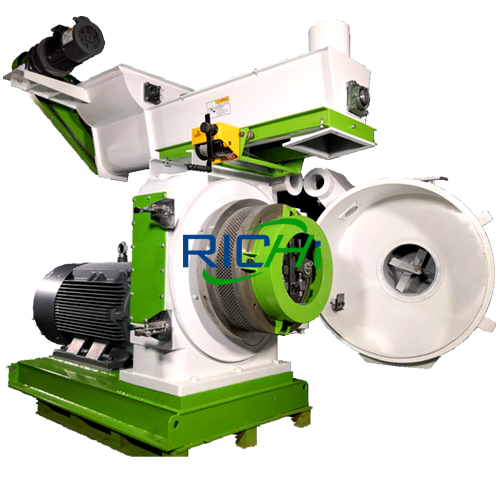

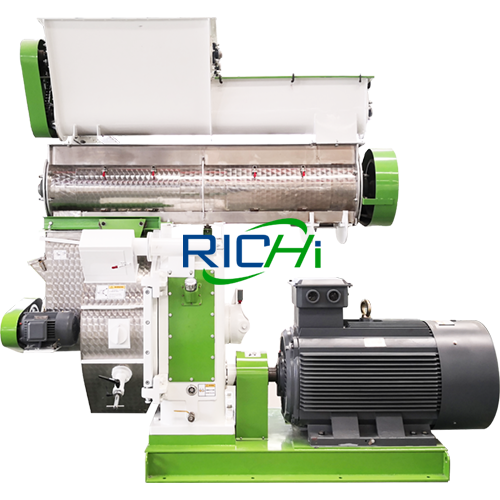

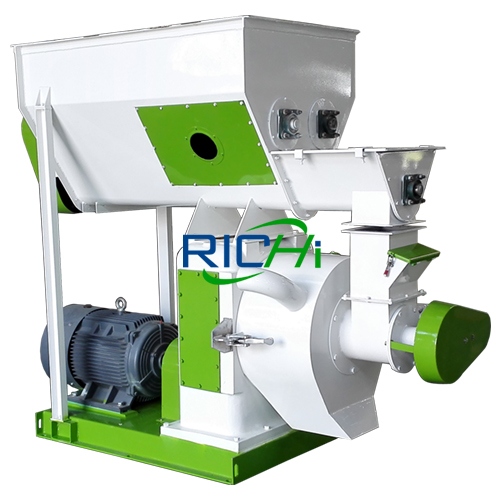

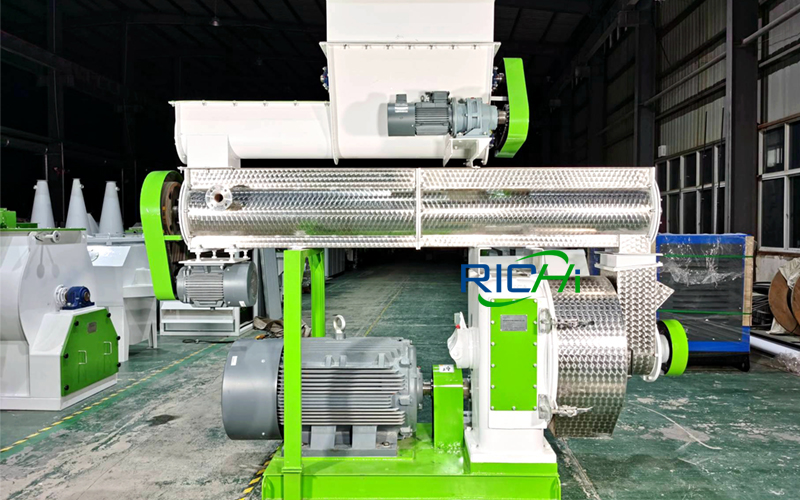

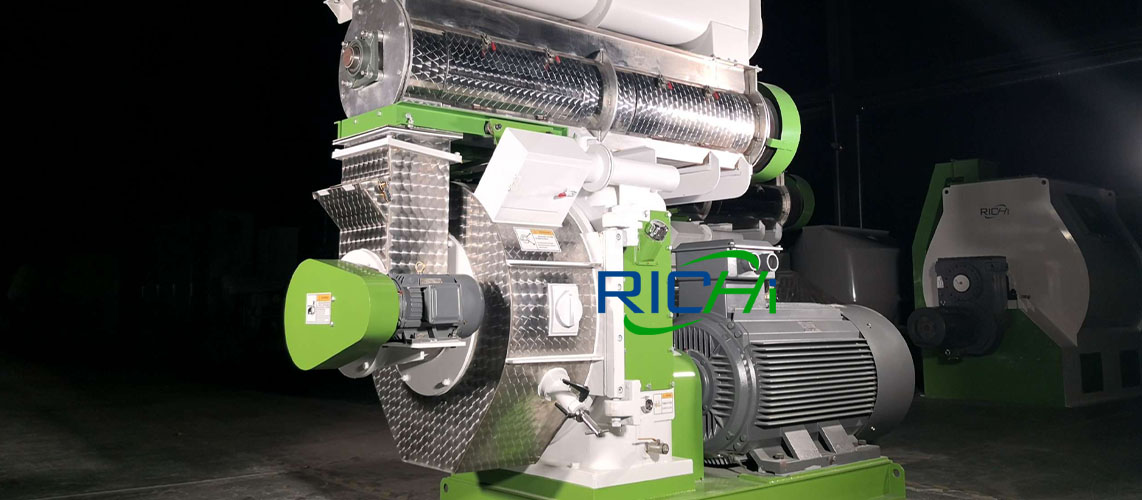

RICHI Bamboo Pellet Mill Machine

Introduction

RICHI bamboo pellet machine for sale is used to make different sizes of bio fuel pellets. New energy fuel pellets are mainly used for power generation in power plants, home heating on pellet stove, and so on. In order to achieve low carbon emission, more investors choose to use green pellets energy. For this industrial pellet machine, RICHI offers installment guidance and design layout for free. Contact us to get the latest bamboo pellet mill price.

Structure

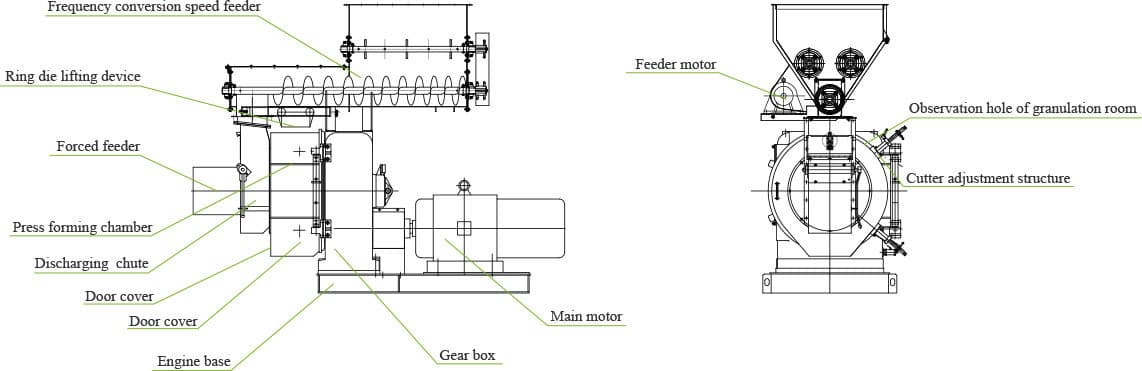

The bamboo pellet mill is composed of a pellet machine frame, a large reduction box, a bearing chamber, a feeding cover, a discharging part, a motor, a pressure roller assembly, and a mold.

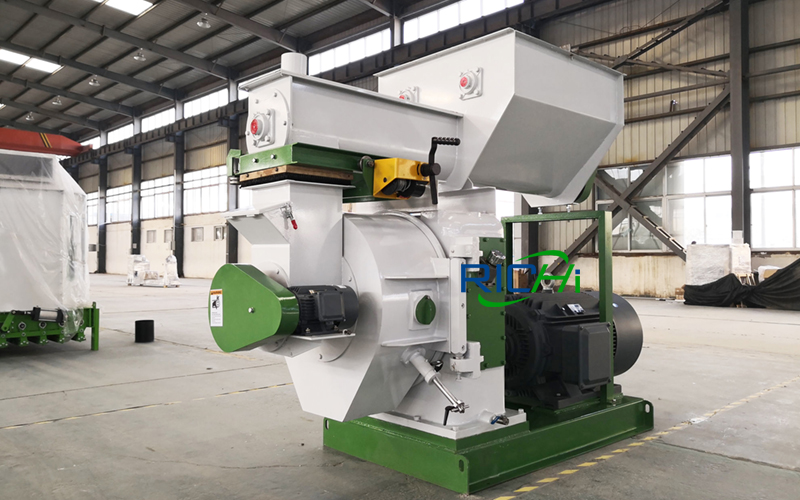

The bamboo pellet machine is operated in a direct connection with a motor. The motor is connected to the shaft of the reducer through a gear coupling. After a 90° change of direction, the horizontal motor drives the vertical casting hollow transfer spindle, and the spindle drives the roller to roll the mold. The inner surface completes the bamboo pellet production process.

When bamboo pellet making machine working, the bamboo or other biomass material falls vertically from the feed inlet, and the material is continuously and uniformly distributed on the surface of the mold cavity (the contact surface between the pressure roller and the mold) through the rotation of the pressure roller, and the powdery material is crushed by the pressure roller holes through the mold (holes evenly distributed on the inner surface of the mold). In this pelletizing process, the material is subjected to high pressure and high temperature to produce physical changes or appropriate chemical changes (according to the material), which promotes the powdery material to form a continuously elongated cylindrical solid body, and then the pellets are cut by a knife and discharged from the discharge port. The compaction process of the bamboo pellets is completed.

Parameter

All the bamboo pellet mill for sale in RICHI, we have the following parameters, but when different raw materials are used, the capacity is different, and the related equipment that needs to be matched may also be different. Therefore, if your raw materials are not bamboo, according to the requirements of raw materials and capacity, contact us for final guidance and suggestions.

Application Range of Bamboo Pellet Mill

Application

For the pellet machine, in addition to bamboo, its raw materials can also include logs, branches, shavings, wood chips, sawdust and other forestry wastes.

This type of biomass pellets are mainly used in biomass power plants, household heating (mainly used in pellet heating furnaces), fuel pellets (if the raw material is fruit trees, the pellets produced are generally used for BBQ), animal supplies (horse litter pellets), and many more.

Therefore, if you are planning to become a bamboo pellets manufacturer and pellet fuel manufacturers, or if your raw material is not bamboo at all, and plan to produce other bioamss fuel pellet products, then RICHI recommends that you contact the pellet machine manufacturer to obtain a quotation and pellet production solutions.

Of course, you can contact us directly and leave your information on our website. Because we are not only a manufacturer of bamboo pellet mill, we also provide customers with complete biomass pellet production solutions, just tell us your raw materials and expected output.

Why Customer Choose RICHI Bamboo Pellet Mill

Features

• Anti-Arch Structure In Bamboo Pellet Making Machine

On the top of the bamboo pellet machine with a anti-caking bin . Inside the bin, there have two rollers for breaking the bamboo to avoid raw materials becoming cake . And the bin can keep pellet machine working more smoothly.

• Bamboo Pellet Mill Force Feeder

Because the bamboo powder is too light , so it is difficult to enter into the pelleting chamber , so we add a force feeder here to improve the efficiency of the pelleting process.

• Bamboo Pelleting Chamber

Optimized structure of the pelleting chamber ensures the uniformity of the material and maximizes the working potential of the bamboo pellet machine. Through the pressure between ring die and rollers, to make pellets. After pelleting , the bamboo pellets temperature is high about 70-80℃. And have 98% qualified pellets, 2% powder.

• Ring Die And Press Roller

This is the 304 stainless steel ring die, it determines the final sizes of the feed! For the ring die, it has the following data: “d”, which refers to the diameter of the ring die ; “h”, which the the depth of the hole, or you can say the thickness of the hole. (d/h=compression ratio).

• Bamboo Pellet Mill Cutting Device

To control the length of final bamboo pellets , means through adjust the distance between cutter and ring die to get the different length of bamboo pellets.

• Steam Discharging Outlet

When the pellet mill machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of bamboo powder enter into the pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the pellet machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber.

• Siemens Motors ,SKF Bearings

Siemens electric motors are synonymous with quality, innovation and the highest efficiency. The high efficiency level reduces energy consumption and directly saves costs for users. High protection level to ensure the safety and reliability for users.

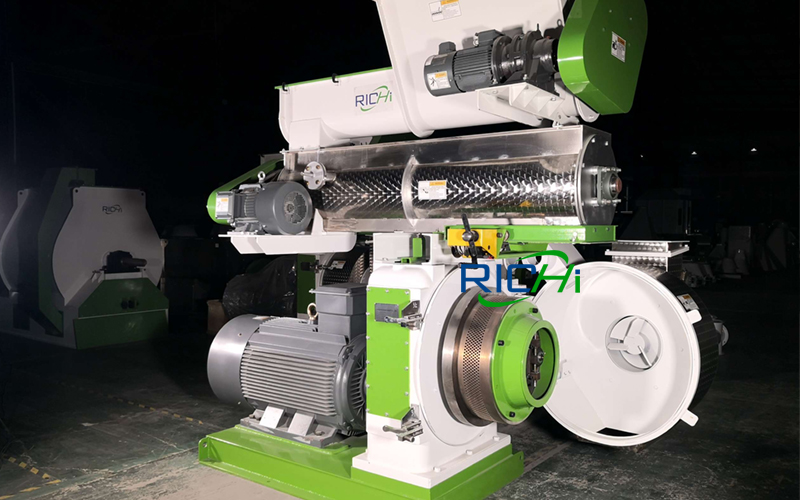

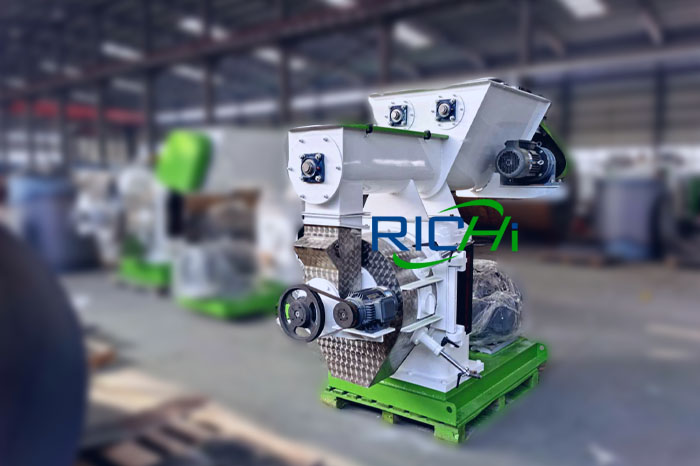

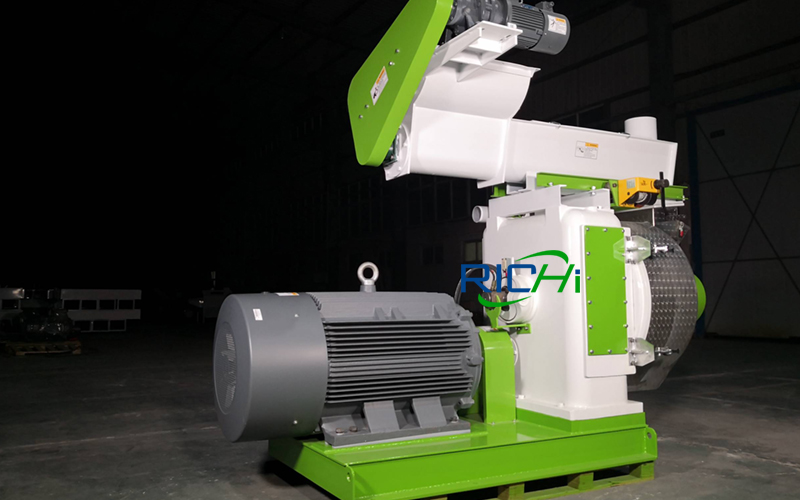

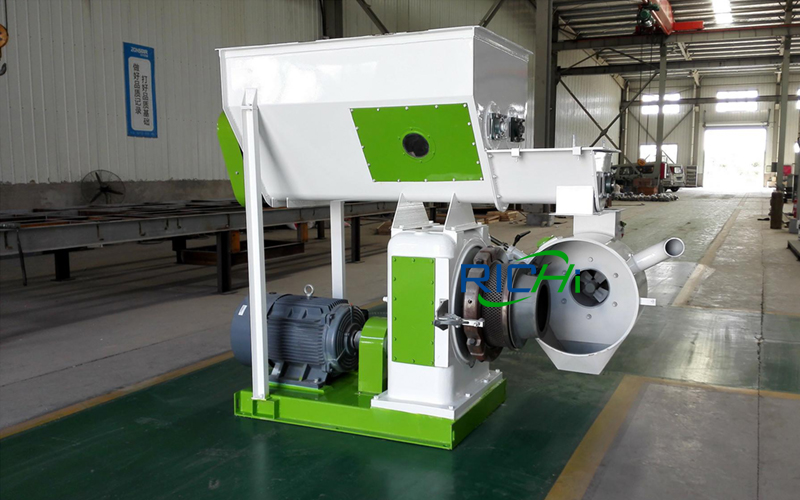

Bamboo Pellet Mill For Sale On Stock In RICHI

Trusted RICHI Bamboo Pellet Mill For Sale

RICHI Bamboo Pellet Mill For Sale – The Related Guide

---

Biomass Fuel Pellets – Bamboo

Bamboo is considered as a new biomass energy material. The calorific value of bamboo is 18.3 -19.7 MJ/kg , which is just like or a little bit higher than beech, spruce, and eucalypt, etc. when bamboo are harvested, bamboo chips can be crushed into sawdust and then be molded into pellets which can be used for fireplaces and stoves.

RICHI has a very mature bamboo pellet production solution. If you want to build a bamboo pellet mill to produce biomass energy pellets, please contact us for guidance.

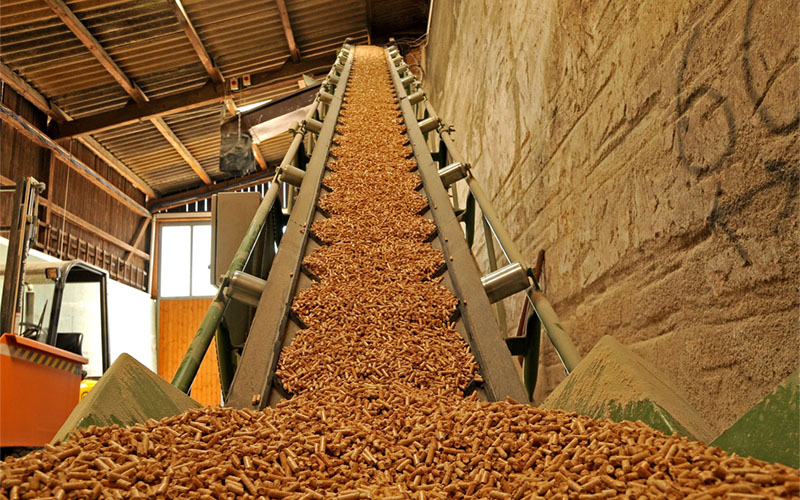

Equipment In Bamboo Pellet Production Process

Generally, in a complete bamboo pellet production line, the following equipment is involved:

• Crushing Machine (grind appropriate size and dry material into powder for granulation)
• Drying Machine (before granulation, if the moisture content of the raw material is too high, it needs to be dried to 8-10%)
• Bamboo Pellet Mill (granulate the prepared material into pellets)
• Cooling Machine(to reduce the produced particles to below room temperature)
• Packing machine (packing bamboo pellets as required).
• Electric Cabinet (control the whole bamboo pellet production line equipment)

As the core of bamboo pellet production, the bamboo pellet mill determines the bamboo quality of the entire pellet production line. RICHI ring die pellet mill machine is worth recommending because of its strong adaptability, simple operation and convenient maintenance.
