Caragana Pellet Machine

RICHI Machinery is a reliable manufacturer of pellet machines, providing pellet machines with different yields for caragana. If you are looking for the caragana pellet machine to process hay into pellets, you have come to the right place! We are not only a professional caragana pellet machine supplier, we also provide customers with professional pellet production solutions and guidance.
RICHI is the 26+ years of experience caragana pellet machine manufacturer in China. Contact us for latest quotation.

Caragana Pellet Machine
Caragana Pellet Machine For Sale

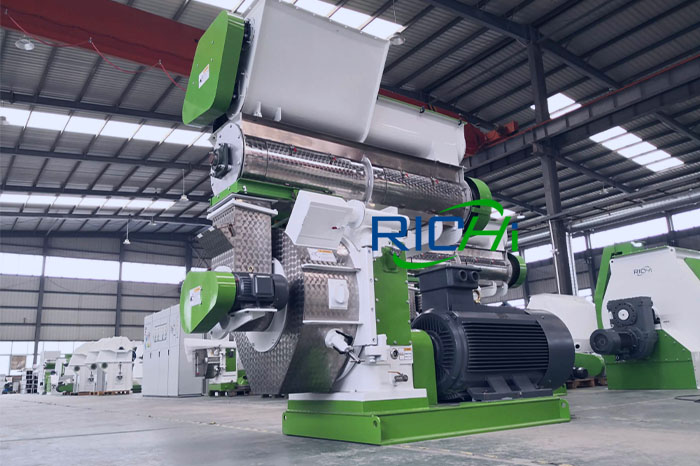

RICHI Caragana Pellet Machine For Sale

We are a professional caragana pellet mill manufacturer and exporter in China. Customers all over the world choose us not only for our product, but also for our services. RICHI not only provide caragana pellet machine for sale, but also provide our customers with a complete turnkey project on how to make hay into pellets.

What you get is not only RICHI Machinery, but also a guarantee for your business.

BRAND

RICHI ®

MODEL

MZLH Series

CAPACITY

300KG~5TON PER HOUR

POWER

37~300KW

Caragana Pellet Machine Manufacturer

In the pellet production industry, customers will always encounter some problems, such as: how to produce caragana pellets, how to build their own pellet production plant how to select and purchase caragana pellet mill, how to distinguish high-quality caragana pellet machine suppliers, etc.

If you want to know some real conditions of pellet production equipment, you can follow our official channel-RICHI MACHINERY.

Follow Us:

Contact Us:

Apply Our Best Quotation

Caragana Pellet Machine Supplier - RICHI Machinery

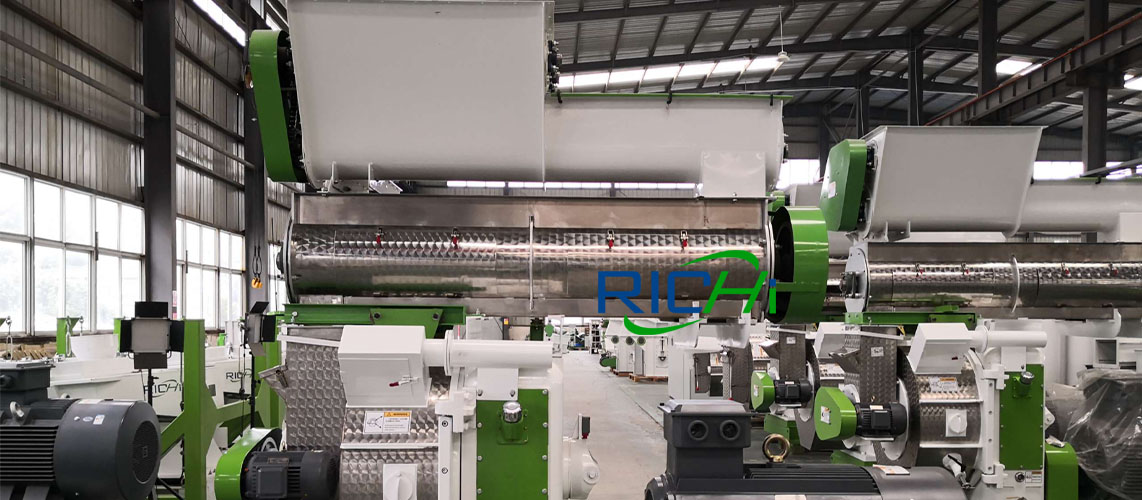

Caragana Pellet Machine Supplier

Many equipments are involved in the process of caragana granulation, such as crushers and dryers for raw material processing; pelletizers; coolers for finished pellets; balers for final products; and so on. The caragana pellet mill is the key equipment in the entire production process. It determines the quality, output, etc. So buying a good caragana pellet machine and where to buy it are the key to your pellet business.

As a professional caragana pellet equipment manufacturer, RICHI has been working in caragana pellet machine sales for many years and has rich experience. If you want to buy a caragana pellet machine, then we can provide you with the most professional advice.

The caragana pellet mill is composed of a pellet machine frame, a large reduction box, a bearing chamber, a feeding cover, a discharging part, a motor, a pressure roller assembly, and a mold.

The caragana pellet machine is operated in a direct connection with a motor. The motor is connected to the shaft of the reducer through a gear coupling. After a 90° change of direction, the horizontal motor drives the vertical casting hollow transfer spindle, and the spindle drives the roller to roll the mold. The inner surface completes the pelletizing process.

When caragana pellet machine working, the caragana material falls vertically from the feed inlet, and the material is continuously and uniformly distributed on the surface of the mold cavity (the contact surface between the pressure roller and the mold) through the rotation of the pressure roller, and the powdery material is crushed by the pressure roller holes through the mold (holes evenly distributed on the inner surface of the mold). In this process, the material is subjected to high pressure and high temperature to produce physical changes or appropriate chemical changes (according to the material), which promotes the powdery material to form a continuously elongated cylindrical solid body, and then the pellets are cut by a knife and discharged from the discharge port. The compaction process of the pellets is completed.

RICHI caragana pellet mill for sale, we have the following parameters, but when different raw materials are used, the capacity is different, and the related equipment that needs to be matched may also be different. Therefore, according to the requirements of raw materials and capacity, contact us for final guidance and suggestions.

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Anti-caking Feeder Power 1.5KW 1.5KW 1.5KW 2.2KW 3KW 3KW
Forced Feeder Power 0.55KW 0.55KW 0.55KW 0.75KW 1KW 1KW
Pellet Machine Power 37KW 55KW 110KW 160KW 250KW 280KW
Capacity(wood sawdust,biomass) 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
Capacity(grass,straw) 600-800KG/H 800-1000KG/H 1.5-2 T/H 3-4 T/H 5-7 T/H 8-10 T/H
Capacity(organic fertilizer) 1-2 T/H 3-4 T/H 5-6 T/H 7-8 T/H 9-10 T/H 10-12 T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Dimension(mm) 2200*900*1300 2500*1100*1600 2800*1150*1730 3000*1260*1860 3300*1500*2000 3500*1600*2180

Application Range of Caragana Pellet Machine

Application Range of Caragana Pellet Machine

Caragana, hay, hemp, hops, forage, natural green grass, or other biomass raw materials can all be pelletized using a caragana pellet machine.

RICHI recommends that you tell us what your raw materials are before buying a pellet mill machine. According to the characteristics of the raw materials, we can recommend a more suitable pellet mill for you.

We are not only a manufacturer of caragana pellet mill for sale, we also provide customers with complete pellet production solutions, just tell us your raw materials and expected output.

Why Customer Choose RICHI Caragana Pellet Mill

Why Customer Choose RICHI Caragana Pellet Mill
  • Anti-Arch Structure In Caragana Pellet Making Machine

On the top of the caragana pellet machine with a anti-caking bin . Inside the bin, there have two rollers for breaking the caragana to avoid raw materials becoming cake . And the bin can keep caragana pellet machine working more smoothly.

  • Caragana Pellet Mill Force Feeder

Because the caragana is too light , so it is difficult to enter into the caragana pelleting chamber , so we add a force feeder here to improve the efficiency of the sawdust pelleting process.

  • Caragana Pelleting Chamber

Optimized structure of the caragana pelleting chamber ensures the uniformity of the material and maximizes the working potential of the caragana pellet machine. Through the pressure between ring die and rollers, to make pellets. After pelleting , the caragana pellets temperature is high about 70-80℃. And have 98% qualified pellets, 2% powder.

  • Ring Die And Press Roller

This is the 304 stainless steel ring die, it determines the final sizes of the feed! For the ring die, it has the following data: “d”, which refers to the diameter of the ring die ; “h”, which the the depth of the hole, or you can say the thickness of the hole. (d/h=compression ratio).

  • Caragana Pellet Mill Cutting Device

To control the length of final caragana pellets , means through adjust the distance between cutter and ring die to get the different length of caragana pellets.

  • Steam Discharging Outlet

When the caragana pellet mill machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of caragana enter into the pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the pellet machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber.

  • Siemens Motors ,SKF Bearings

Siemens electric motors are synonymous with quality, innovation and the highest efficiency. The high efficiency level reduces energy consumption and directly saves costs for users. High protection level to ensure the safety and reliability for users.

Sawdust Pellet Mill For Sale On Stock In RICHI

Trusted RICHI Caragana Pellet Mill For Sale

26Years Experience of Manufacturing and Exporting

26Years Experience of Manufacturing and Exporting

“We have 26+ years’ experience of caragana pellet mill machine, and have exported 110+ countries.”

Full Set of Certification

Full Set of Certification

“RICHI has pass through the CE&IOS 9001 Certification, All the caragana pellet machine for sale has tested before delivery.”

Support Delivery Anywhere in The World

Support Delivery Anywhere in The World

“RICHI Machinery can ship the caragana pellet making machine to your port in your country, we supply the FOB & CIF Price. Just contact us for more details.”

Full Support on Installation &Training

Full Support on Installation &Training

“We provide complete caragana pellet machine for sale, installation at the customer’s local area and promise to train – ‘how to make caragana pellets with caragana pellet mill’ until the customer is proficient in operating the pelletizing system.”
