ADVANCED PELLETIZING TECHNOLOGY

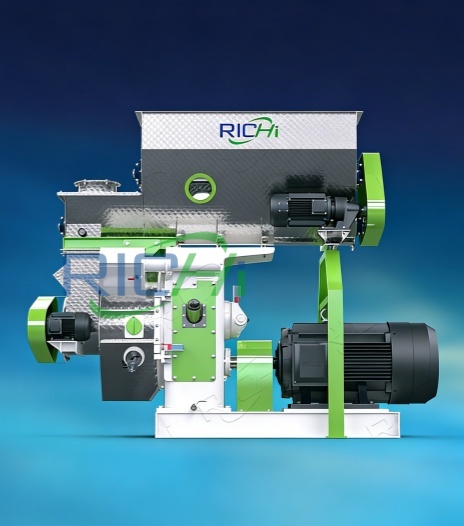

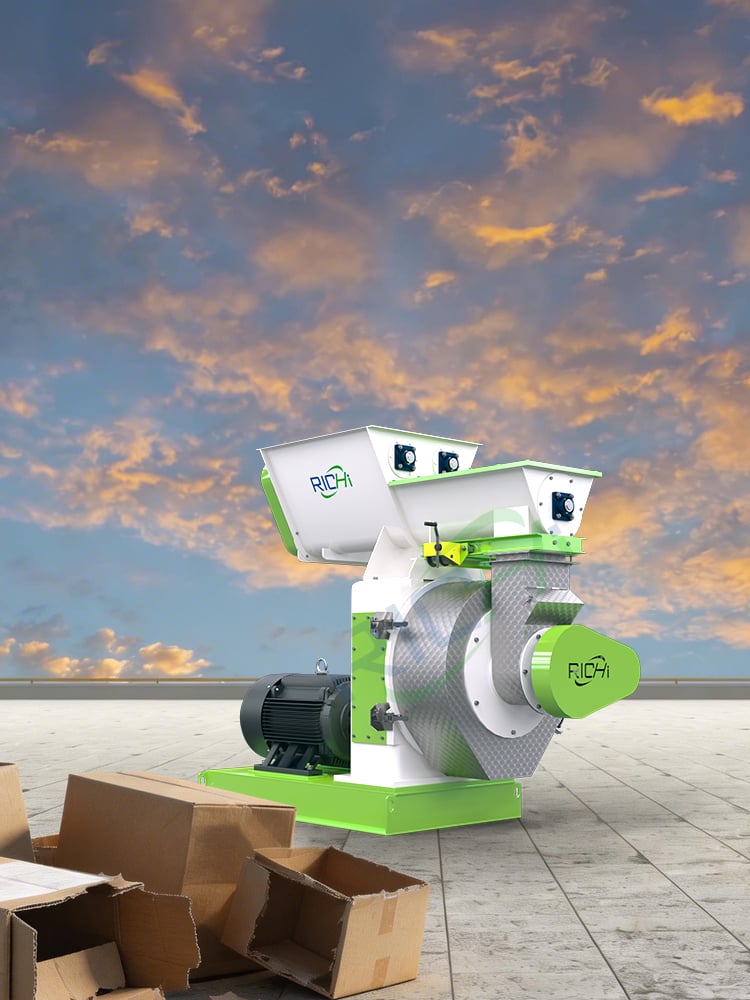

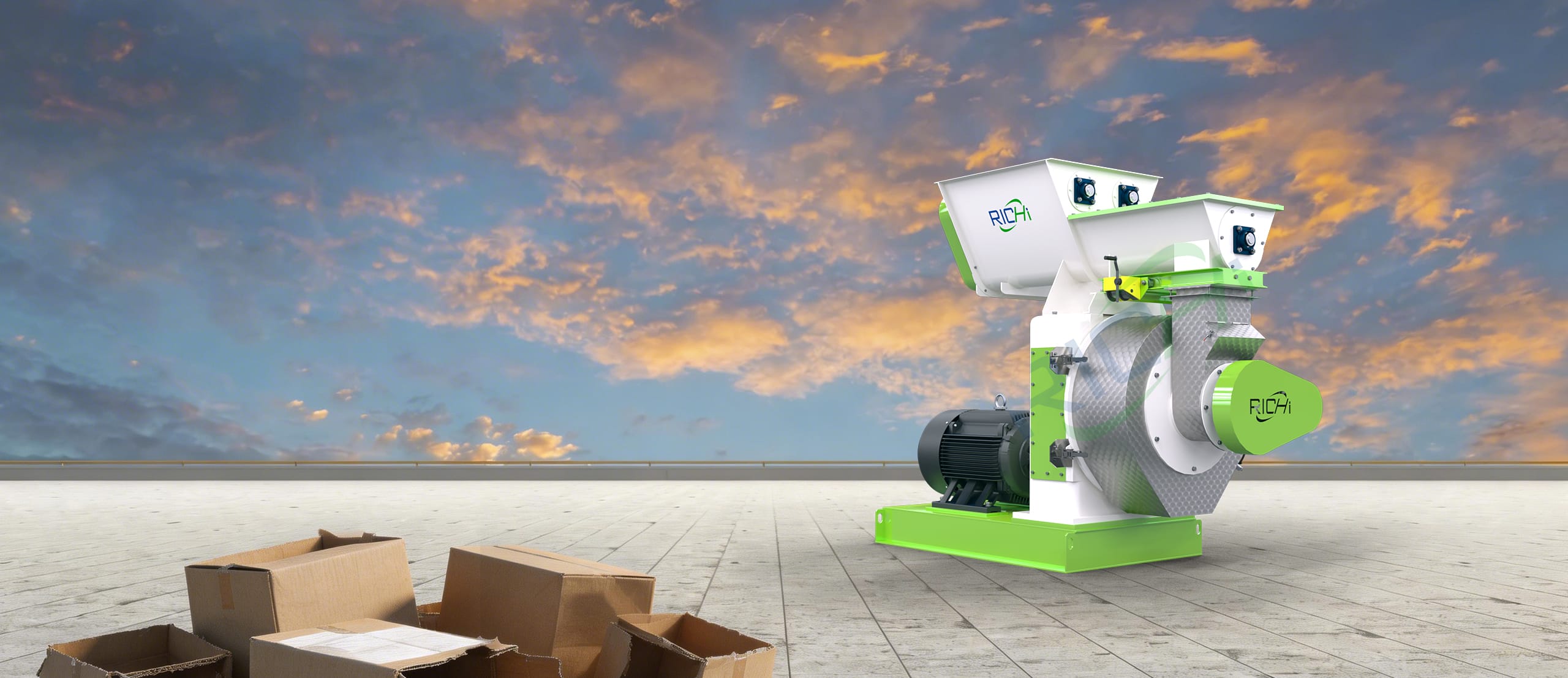

PAPER PELLET MACHINE
The paper pellet machine efficiently processes waste paper, cardboard, and other paper products. It crushes, dries, and pelletizes waste paper into compact pellets, which can be used as fuel or for making paper pellet cat litter. The RICHI paper pellet machine offers low energy consumption, high efficiency, and stable operation with a high molding rate.
Output
0.3-5 T/H
Price
$7000-$100000
RAW MATERIALS FOR PAPER PELLET PRODUCTION
In theory, any discarded paper can be used to produce paper pellets. Here, the raw materials suitable for paper pellet production are classified into three main categories: waste packaging paper, used office paper, and scrap paper products, as outlined below.
Waste Packaging Paper
Waste packaging paper is the most cost-effective raw material for paper pellet production. It mainly includes express boxes, cartons, packaging paper, milk cartons, and similar materials. These raw materials are easy to source and low in cost.
Where can it be applied?
Used Office Paper
Used office paper features high fiber purity and consistent quality. Typical materials include printing paper, draft paper, notebooks, envelopes, and file folders. It delivers superior performance in pellet production.
Paper Offcuts
Scrap paper generated from discarded paper products—such as leftovers from toilet paper manufacturing, cardboard trimming waste, and bookbinding scraps—can be recycled and reused as industrial raw materials.
Waste Newspaper
Waste Cardboard
Discarded books and magazines

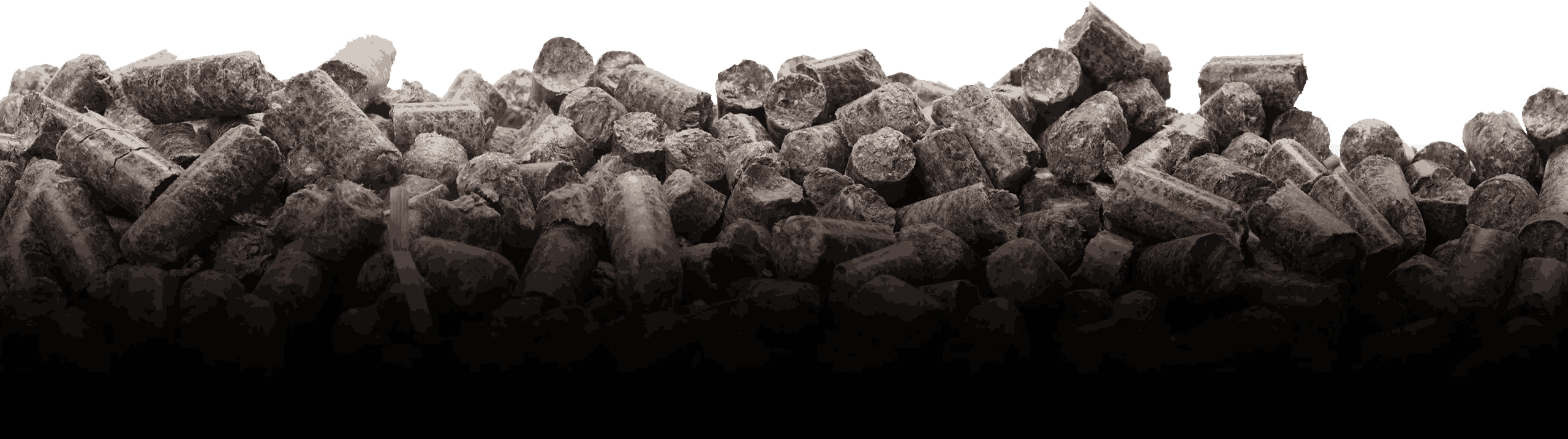

USES AND ADVANTAGES OF PAPER PELLETS
Discarded paper materials vary in form, are bulky, and difficult to store and transport, which limits their direct use. By converting them into paper pellets, the utilization value of waste paper can be significantly increased. In addition, by adjusting parameters such as pellet hardness and size, the application range of the finished pellets can be further expanded.
Clean Fuel
Paper pellets can be used in industrial heating, biomass power plants, and residential heating. They are suitable as boiler fuel in paper mills and food processing plants, helping turn waste into energy.
Cat Litter and Bedding
Paper pellets can be made into cat litter or pet bedding with strong water absorption. They are biodegradable, odor-free, and can be disposed of as organic waste after use.
Low Cost and Eco-Friendly
Waste paper is widely available and inexpensive. After processing into pellets, it has higher value. Combustion produces lower sulfur and nitrogen oxide emissions than fossil fuels, with minimal ash and no heavy metal pollution.
Easy Storage and Transport
Pellets are compact and reduce storage space by over 70% compared with loose waste paper. They have uniform density, resist deformation, and can be transported in bags or bulk, lowering logistics costs.

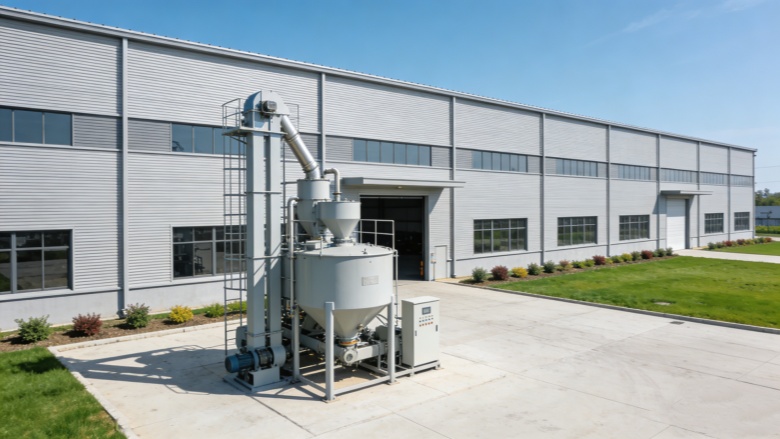

VIDEO DEMONSTRATION OF THE PELLET MACHINE
To provide you with a more comprehensive understanding of RICHI Machinery and to give you a clearer, more intuitive insight into our pelletizing equipment and complete pellet production lines, we have prepared three introductory videos for your reference.
CLICK THE BUTTON
CLICK THE BUTTON
CLICK THE BUTTON
PAPER PELLET MACHINE MODELS
We offer six paper pellet machine models to meet different needs in capacity, production scale, and application. Output ranges from 0.3 to 5 T/H. The reference parameters are listed below. If you are unsure which model suits your production scale, please contact us for professional guidance.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH768 |
|---|---|---|---|---|---|
| Main motor power(KW) | 37 | 55 | 110 | 132 | 250 |
| Forced Feeder Power(KW) | 0.55 | 0.55 | 0.55 | 0.75 | 1 |
| Ring Die Diameter(MM) | 320 | 350 | 420 | 520 | 768 |
| Pellet Diameter(MM) | 6-12 | 6-12 | 6-12 | 6-12 | 6-12 |
| Output Capacity(T/H) | 0.3-0.4 | 0.5-0.7 | 1-1.5 | 2-3 | 3-4 |
MAIN COMPONENTS OF THE PAPER PELLET MACHINE
A paper pelletizer is the core equipment for turning processed raw materials into pellets. The main operation steps include feeding, pelletizing, and conveying. Key components such as the ring mold, rollers, motor, bearings, feeder, and anti-caking hopper work together to ensure efficient operation and high-quality pellets.

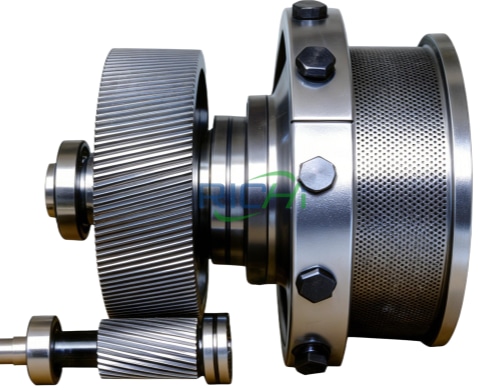

Ring Die and Pressure Roller
The ring die and pressure roller are made of 42CrMo, which is more wear-resistant than standard alloy or carbon steel. Compared with a flat die, the ring die provides a larger forming area, higher efficiency, and more stable pellet quality. Our paper pellets machine can reach a pellet forming rate of up to 98%.

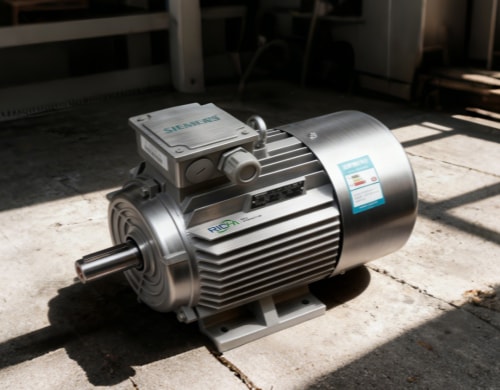

Siemens Motors
The main drive motor is an imported Siemens motor, known for high efficiency and low energy consumption. It delivers stable power for long-term operation and ensures reliable performance throughout the pelletizing process.

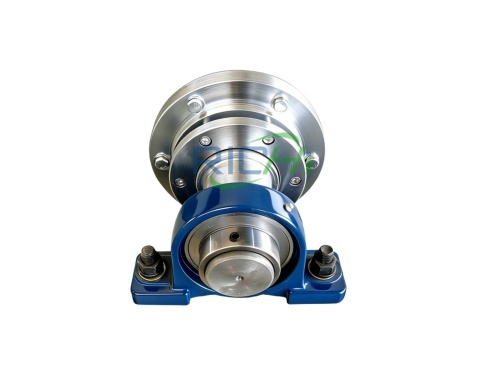

SKF Bearings
Our paper pellet making machine uses imported SKF bearings, which are highly durable and have low friction. This reduces transmission loss, lowers noise, and improves stability, extending the machine’s service life and reducing maintenance costs.

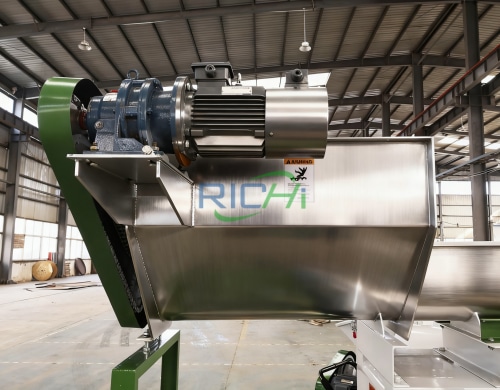

Forced Feeder
The forced feeder ensures stable feeding, especially for light or loose materials that cannot enter the pelletizing chamber on their own. It helps maintain smooth material flow and prevents clogging or material breakage.
FOUR BENEFITS OF RICHI PAPER PELLET MACHINE
Addressing common industry issues like high energy use and poor material adaptability, our paper pellet maker offers an efficient and stable solution for waste paper recycling. Its four main advantages are:
Strong Material Adaptability
Customizable compression ratios ensure optimal pelletizing for various raw materials.
Durable and Reliable
Core components are made of wear-resistant 42CrMo, and imported motors and bearings ensure long-term reliable operation.
Energy-Saving and Efficient
Low energy consumption and high wear resistance of core components ensure stable and efficient overall performance.
Comprehensive After-Sales Service
We offers a complete after-sales system, including installation, training, and maintenance support from a professional team.

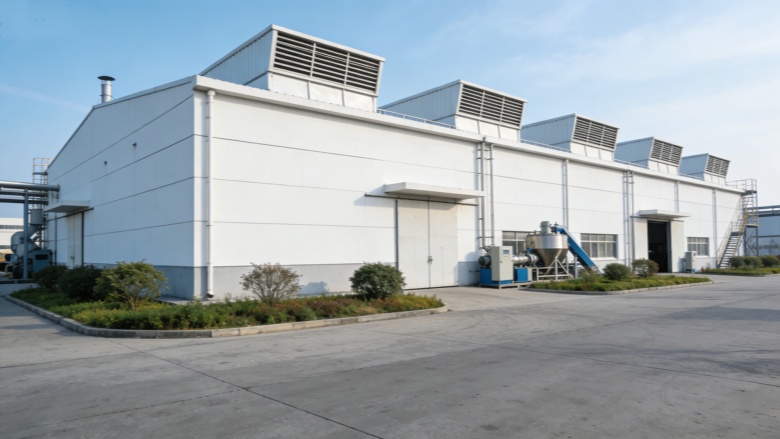

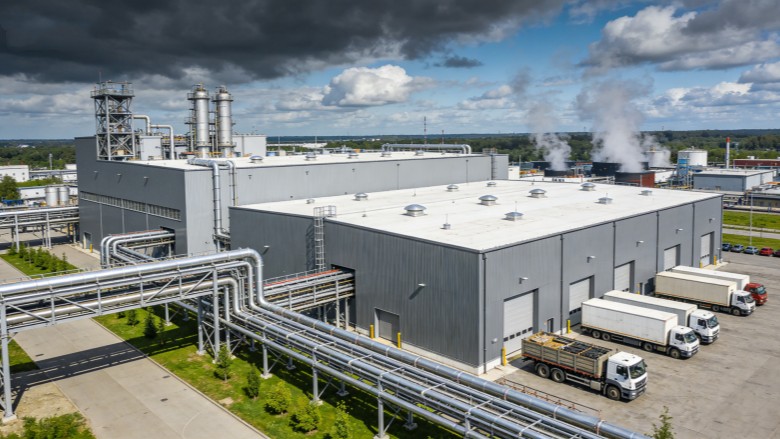

PAPER PELLET MACHINE PROJECT EXAMPLES
As a leading manufacturer and exporter of pelletizing equipment, RICHI Machinery has shipped products to over 140 countries and regions. Below are some paper pellet making machine project examples. For more information, please contact us.

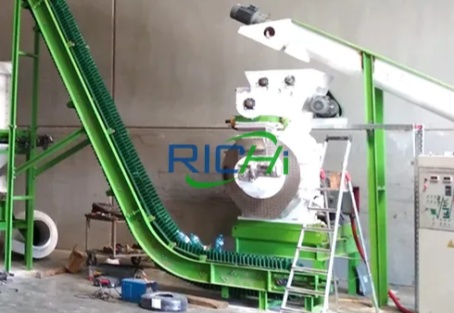

Australia 2–3 T/H Project
This project uses recycled office paper and waste newspapers to produce biomass fuel pellets for commercial heating.

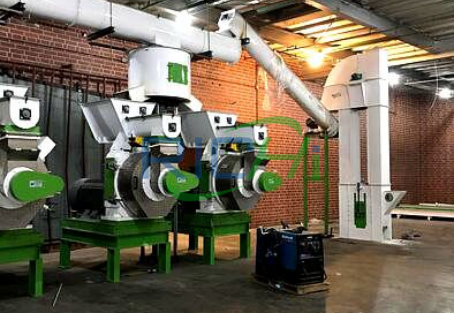

USA 8 T/H Project
This project turns cardboard waste into biomass fuel pellets for local power plants and boilers.

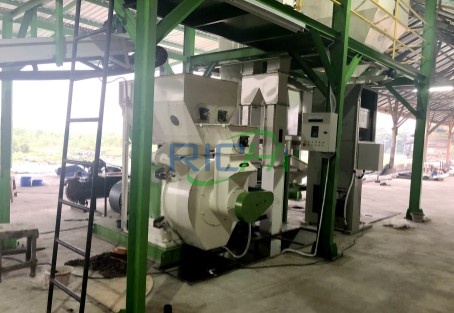

Russia 2–3 T/H Project
Locally recycled waste paper is processed into paper pellet cat litter to meet demand for eco-friendly pet bedding.

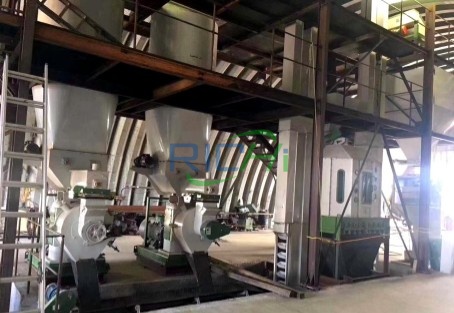

Malaysia 6 T/H Project
Waste paper from local paper industry is processed into industrial fuel pellets for factory heating.

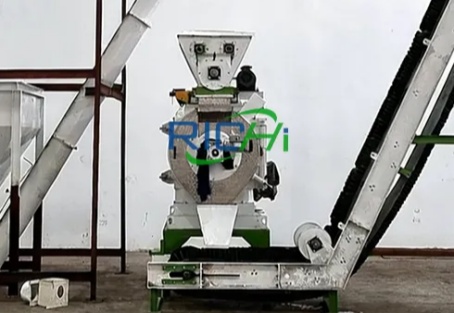

Indonesia 1.5 T/H Project
Packaging paper waste is made into biomass fuel pellets to replace fossil fuels in industrial heating.

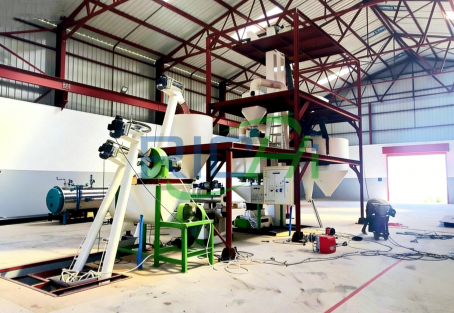

Thailand 3 T/H Project
A production line was built to turn express delivery packaging waste into fuel pellets for food and paper factories, reducing environmental and logistics costs.
These projects show the wide application of our paper pellet machines. If you want to learn more or discuss a customized solution, please contact us.
MORE PELLET MACHINE OPTIONS FOR DIFFERENT MATERIALS
In addition to paper pellet mills, we also offer a range of pellet making machines for different raw materials and applications, including wood pellet machines, biomass pellet machines, cat litter pellet machines, grass pellet machines, and EFB pellet machines.
WOOD PELLET MILL
Suitable for compressing sawdust, wood shavings, and other wood-based materials. Equipped with high-strength alloy dies and wear-resistant rollers, it is designed to handle high-fiber, high-hardness materials. The machine operates stably and produces high-density pellets, widely used in biomass fuel production.
BIOMASS PELLET MACHINE
This equipment processes agricultural and forestry residues such as wood, straw, peanut shells, and other biomass materials into high-density pellets. It helps reduce energy shortages and lowers environmental pollution from biomass waste.
GRASS PELLET MAKING MACHINE
Designed for pelleting alfalfa, straw, and various forage materials with high fiber content. Optimized compression structure ensures dense and stable pellets. The machine can accommodate both feed and biomass fuel production, offering reliable performance for continuous operation.
EFB PELLET MACHINE
Wood pellet mill machiness are mainly used to process various wood-based pellets. The processed pellets are mainly used as fuel (replacing traditional energy sources such as coal and natural gas), animal litter(cat litter, litter for stables and poultry farms), industrial raw materials (activated carbon, cellulosic ethanol, etc.),home fireplace fuel, barbecue charcoal substitutes, etc.
CAT LITTER PELLET MAKING MACHINE
Designed for producing animal bedding pellets, this machine can handle materials such as bentonite, soybean dregs, sawdust, clay, peanut shells, cassava, grass, corn cobs, and waste paper.
PAPER PELLET PRODUCTION LINE
We offer a highly automated paper pellet production line that ensures stable pellet quality, improves production efficiency, and reduces labor costs. A typical paper pellet production line includes the following sections:
01
Raw Material Cleaning
Remove hard impurities to prevent equipment damage.
02
Raw Material Crushing
Break down large pieces to ensure uniform material size.
03
Moisture Control
Adjust moisture to 13%–18% before pelletizing.
04
Material Mixing
Mix different materials evenly if additives are needed.
05
Pelletizing
The pre-treated material is fed into the pelletizing chamber, where the ring die and pressure roller form uniform pellets.
06
Drying and Cooling
Cool the freshly formed pellets to stabilize their shape and quality.
07
Screening and Packing
Remove broken pellets and unformed material, then pack the finished pellets for storage and transport.
08
Auxiliary Systems
Conveying, storage, and dust removal systems support smooth and environmentally friendly operation.
Production Line Equipment powerhouse
Paper pellet production requires not only the core pelletizing equipment but also a range of auxiliary machines to complete the process. We provide a complete set of production line equipment. In addition to offering individual machines for sale, we also design and configure production lines tailored to the specific characteristics of raw materials, production scale, and factory conditions. Below are the related equipment we offer.
Crushing
Paper Crusher
Shred various types of paper waste into 3-5mm pieces.
Bale Breaker
Breaks up compressed bales of straw.
Wood Chip Crusher
Chips logs into thin slices, typically 2-3 cm in size.
Template Crusher
Used for crushing broader, thinner materials, like old door panels.
Drum Chipper
Crushes small wood chips into sawdust, ranging from 3-5 mm.
Wood Shredder
Multi-functional grinder, capable of crushing various types of wood raw materials, ideal for small-scale crushing applications.
Drying
Tumble Dryer
Reduces the moisture content of wet materials to around 15%.
Belt Dryer
A belt dryer uses a conveyor belt and hot air to dry materials continuously.
Cooling
Counterflow Cooler
Cools the finished pellets to near room temperature.
Pellet Cooler
Used to reduce the temperature of finished pellets.
Screening
Vibrating Screen
Removes powder and broken particles from the finished pellets.
Rotary Grading Screen
Rotary Grading Screen is a cylindrical screening device that uses a rotating drum to separate and classify materials based on size.
Packing
Finished Product Packing Scale
Weighs and packages the finished pellets into bags.
Conveying
Bucket Elevator
Used for vertical lifting and transporting materials.
U-shaped Screw Conveyor
Designed for short-distance, horizontal or inclined transport of powdered materials.
Flanged Conveyor
Used for short-distance, high-angle transport of finished pellets.
Belt Conveyor
Ideal for low-angle, high-capacity material transport.
Mixing
High-Efficiency Mixer
Uses a turning and tossing method to evenly blend materials by lifting and dropping them.
Ribbon Mixer
Employs a left-and-right kneading action for faster and more uniform mixing of materials.
Single-Screw Ribbon Mixer
Single-Screw Ribbon Mixer is a type of horizontal mixing equipment used to blend dry powders, granules, and other materials efficiently.
Horizontal Feed Mixer
The Horizontal Feed Mixer uses horizontal paddles or screw augers to ensure uniform mixing, ideal for large-scale feed production.
Feed Mixer Machine
Feed Mixer is a machine designed for mixing raw materials such as grains, additives, and other ingredients to produce animal feed.
Silo
Biomass Raw Material Silo
Stores pretreated raw materials, ensuring a stable feed to the production line.
Finished Pellet Silo
Stores finished pellets, allowing smooth discharge for easy measurement and packaging.
Others
Dust Collection System
Environmental protection equipment for dust-generating processes such as crushing, mixing, and granulating, reducing workshop dust and protecting operators.
Permanent Magnet Drum
Permanent Magnet Drum is a type of magnetic separator that uses permanent magnets to remove ferrous materials from bulk solids, liquids, or powders.
FREQUENTLY ASKED QUESTION
If you would like to learn more about our paper pellet machines, please leave your contact information and we will get in touch with you as soon as possible.
Can wet waste paper be pelletized?
Yes. Our production line includes a moisture control process. The optimal moisture content for pelletizing is 13%–18%. If the material is too wet, it will be dried first, and once the moisture is within the ideal range, it can move on to pelletizing.
Can paper pellets be produced with only one pellet machine?
In general, producing paper pellets requires basic crushing equipment and moisture control equipment. Before pelletizing, raw materials must meet two key standards: they should be crushed to about 3 mm, and moisture content should be between 13% and 18%. These requirements are essential for effective pelletizing. If you need more details, please leave your contact information and our technical consultants will get in touch.
Can paper be shredded with a paper shredder to make paper pellets?
Generally, no. Paper pellet production requires waste paper to be reduced to about 3 mm, which ordinary paper shredders usually cannot achieve. Waste paper materials also vary in hardness, making it difficult for regular shredders to fully process them. We recommend using professional shredding equipment. RICHI Machinery offers not only pellet machines but also complete production line equipment such as shredders and dryers. If you need more details, please leave your contact information and our technical consultants will assist you.
What is the cost of a paper pellet production line?
The cost depends on multiple factors, including raw material type, target capacity, equipment model, automation level, and auxiliary systems. Local conditions and site requirements also affect the final price. For an accurate quotation, please leave your contact information, and our technicians will contact you to plan a detailed solution.
What should be paid attention to when making paper pellets?
Making paper pellets requires attention to four key areas: raw material preparation, equipment matching, process control, and finished product quality.
Raw material preparation: Sort and clean waste paper to remove hard impurities such as metal, plastic, and sand. Crush the material to about 3 mm.
Moisture control: Adjust moisture to around 15%. If too wet, dry it; if too dry, add moisture to avoid poor pellet discharge or loose pellets.
Process control: Maintain stable pressure and temperature during pelletizing.
Finished product handling: Cool and screen the pellets to prevent sticking. Regularly maintain the machine and clear die holes to ensure stable production.
