Wood Pellet Mill For Sale

Learn More About Wood Pellet Mill For Sale

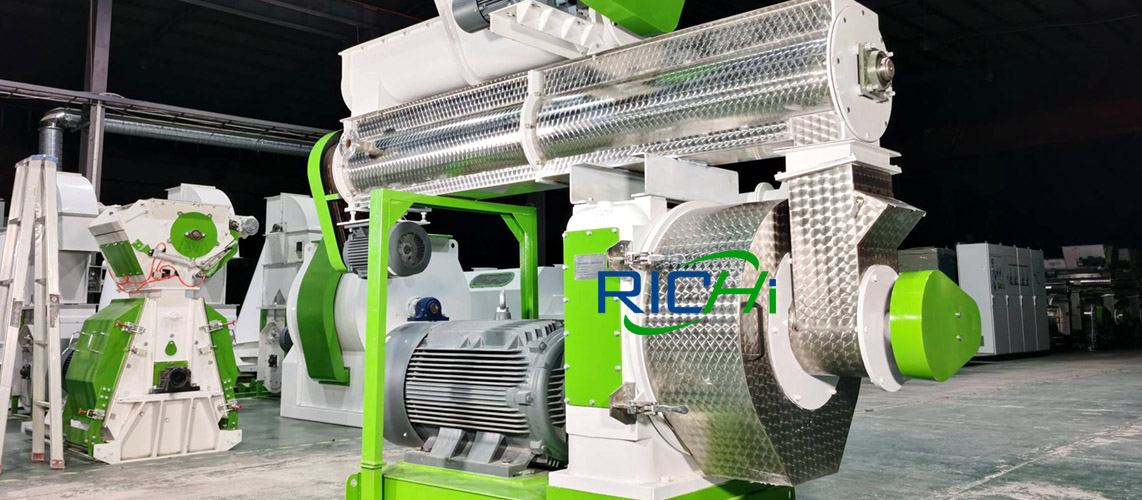

Introduction

Wood pellet mill is a new energy pelletizing equipment. Rice husks, peanut husks, melon seed husks, bamboo chips, bagasse, palm husks, branches, wood logs, barks, leaves, sawdust; all kinds of sawdust produced by large furniture factories and timber factories; these raw materials can be made into wood pellets or biomass pellets and finished pellets will replace coal in the future as renewable fuel pellets for power plants, home heating, BBQ, horse beds, and so on.

Structure

After so many years of development, there are many brands of pellet mill for sale all over the world. For example, domestic first-line wood pellet mill for sale represented by Zhengchang, Famsun and RICHI; Andritz and Buhler wood pellet maker for sale in Europe; and CPM wood pellet press for sale in North America. Each brand of pellet mill for sale may look different in appearance, but the working principle of all wood pelletizer for sale is the same: the crushed raw material enters the pellet mill and is squeezed by the ring die and pressure roller into cylindrical pellets.

In addition to wood pellets, more and more raw materials have been developed, with varying qualities. After a long period of trial and error, we added a forced feeder outside the granulation room, the purpose is to improve the feeding efficiency of lighter raw materials, and ultimately improve work efficiency and increase production.

Parameter

All the wood pellet mill for sale, we have all the following parameters, and when different raw materials are used, the output is different, and the equipment that needs to be matched may also be different. Therefore, according to the requirements of raw materials and output, contact us for final guidance and suggestions about wood pellet plant for sale.

Application Range of Wood Pellet Mill

Application

Generally, for pellet mill, the raw materials are logs, branches, shavings, wood chips, sawdust and other forestry wastes. But now more and more organic wastes are developed into raw materials for biomass pellets, so our wood pellet mill for sale can also be adapted to many raw materials. So we also use the name of the raw material to name the granulator. For example, in RICHI, we also call it:

• Wood Pellet Machine For Sale
• Sawdust Pellet Machine For Sale
• Grass Pellet Mill For Sale
• Wood Pellet Press For Sale
• Wood Pelletizer For Sale
• Wood Pellet Maker For Sale
• Wood Pellet Plant For Sale
• Biomass Pellet Machine For Sale

The pellet mill machine for different raw materials has different names, but they are actually the same kind of granulator. The difference is that, according to different raw materials, some parts of the wood pellet mill for sale are different (ring dies of different sizes and apertures; customized feeders; etc.).

Features

Anti-Arch Structure In Wood Pellet Mill

On the top of the pellet mill machine with a anti-caking bin . Inside the bin, there have two rollers for breaking the sawdust to avoid raw materials becoming cake . And the bin can keep wood pellet machine working more smoothly.

• Wood Pellet Mill Force Feeder

Because the wood sawdust is too light , so it is difficult to enter into the wood pelleting chamber , so we add a force feeder here to improve the efficiency of the wood pelleting process.

• Wood Pelleting Chamber

Optimized structure of the wood pelleting chamber ensures the uniformity of the material and maximizes the working potential of the wood pellet machine. Through the pressure between ring die and rollers, to make pellets. After pelleting , the wood pellets temperature is high about 70-80℃. And have 98% qualified pellets, 2% powder.

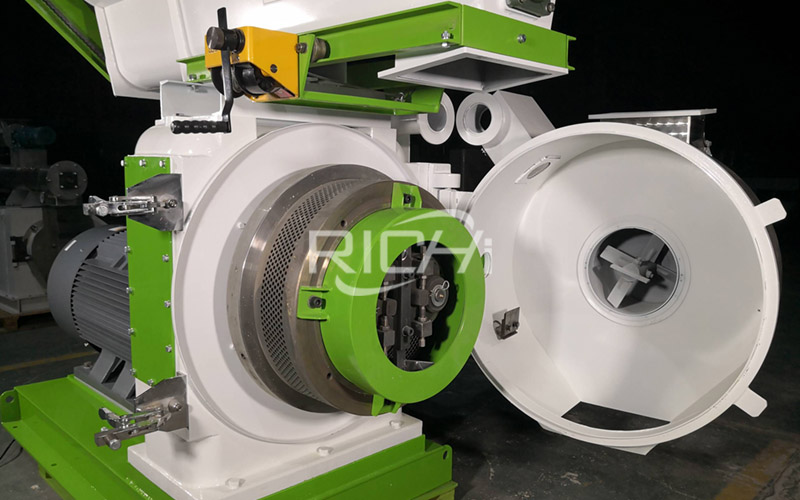

• Ring Die And Press Roller

This is the 304 stainless steel ring die, it determines the final sizes of the feed! For the ring die, it has the following data: “d”, which refers to the diameter of the ring die ; “h”, which the the depth of the hole, or you can say the thickness of the hole. (d/h=compression ratio).

• Wood Pellet Mill Cutting Device

To control the length of final wood pellets , means through adjust the distance between cutter and ring die to get the different length of wood pellets.

• Steam Discharging Outlet

When the pellet mill machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of sawdust enter into the pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the pellet machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber.

• Siemens Motors ,SKF Bearings

Siemens electric motors are synonymous with quality, innovation and the highest efficiency. The high efficiency level reduces energy consumption and directly saves costs for users. High protection level to ensure the safety and reliability for users.

Wood Pellet Mill For Sale On Stock

Why RICHI wood pellet mill for sale can be trusted by importers?

Wood Pellet Mill For Sale – The Related Guide

---

10T/H Wood Pellet Mill For Sale in USA

The project is a 10 tons per hou customized automatic wood pellet production line with a competitive price. The customer’s main production raw materials are some waste wood, which is relatively large and contains impurities such as iron nails.

Therefore, if you want to make wood pellets, you must first slice and crush them. We have specially customized the cleaning section for customers, which can screen out iron nails, then directly slice and crush the waste wood, and then crush it again with a high-efficiency sawdust hammer mill to meet the granulation requirements.

The core equipment of this wood pellet plant is three MZLH768 ring die wood pellet press, with a single pellet mill machine output of about 2.5-4 tons/hour and power of 250kw. It is our high-performance pelletizing equipment, and it is also the wood pelletizing equipment recognized by customers all over the world.

5T/H Wood Pellet Mill For Sale Canada

RICHI’s professional installation team helps customers install and solve problems in the installation process.

1. We send two technical and installation engineers to guide the installation；
2. After installation and commissioning, we have trained the customer’s workers how to operate the complete pellet production line；
3. Train workers how to maintain and protect pellet mill machine;
4. According to the characteristics, we will formulate a complete maintenance rule for you, including how to maintain, when to maintain, and who to maintain；
5. Our company’s after-sales department will regularly call Canadian customers to inquire whether maintenance is needed and give suggestions；
6. In addition to wearing parts, our company provides 1 year free warranty and permanent free technical support.

2-2.5T/H Wood Pellet Mill For Sale Australia

In 2021.01.21, the contract was signed for the 2-2.5t/h customized wood pellet processing line project. The customer has just entered the biomass pellet fuel processing industry. During the negotiation, we learned that the customer had a negotiation with 12 wood pellet machine manufacturers. RICHI was the last to enter his list of cooperation, but eventually became the most trusted manufacturer of China’s wood biomass pellet production line by customers.

There are many reasons why customers choose RICHI. In addition to RICHI’s product quality and brand awareness in many regions, customers also value our full consideration of him. In addition, due to the limited budget of the client, in order to ensure the quality and service life of the equipment configuration of the entire wood pellet fuel production line, for the pre-treatment stage of wood, the client purchases second-hand equipment in nearby areas, such as (wood peeling equipment, wood splitting equipment).

In addition, this 2-2.5 tons per hour biomass wood pellet plant strictly complies with Australian electrical standards. The final pellet factory also equips each device with an emergency stop system and an independent power switch to ensure safe operation.

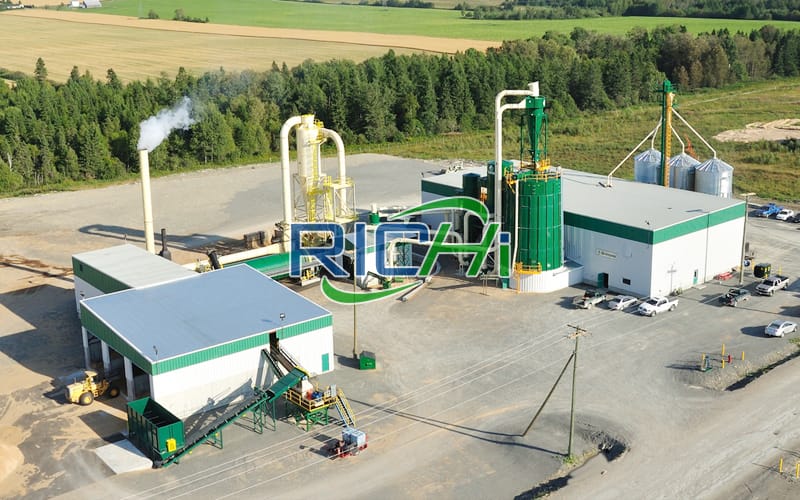

500KG/H Wood Pellet Mill For Sale UK

A 500kg/h beech wood small-capacity biomass pellet plant was built in the UK. The project is scheduled to be completed in the middle of 2018 and successfully completed in 2019. The main raw material is beech wood. The required production capacity is 500kg/h-700kg/h. The optimal moisture content of this raw material should be 12%.

The wood pellet production process of this project includes crushing, mixing, pelletizing, cooling, lifting and packaging. The packaging is divided into 15 kg per bag and 1 ton per bag to meet different market needs.

As mentioned above, beech wood is used to produce many useful products. The moisture content of beech wood is 12%, which is normal for wood pelletizing process, so you don’t have to spend time drying it for longer. Drying wood is also easy because it shrinks quickly. Choosing beech wood as the raw material for wood pellet production enterprises also saves investment costs. This is why its use in the production of wood pellets is a great choice for our Uk customers.
