MZLH858 Series

Wood Pelletizer

RICHI wood pelletizer equipment for sale. 26 years of wood pelleting plant experience, professional design and manufacturing team, overseas installation engineers, competitive factory direct sales prices. Advanced wood pelleting process technology, contact us for more.

Power: 280KW
Capacity: 3-4.5 T/H
Pellet Size: 6-12mm

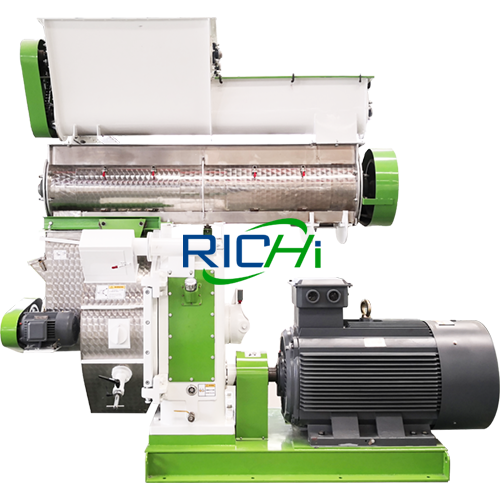

wood pelletizer
CONTACT RICHI MACHINERY FOR MORE DETAILS

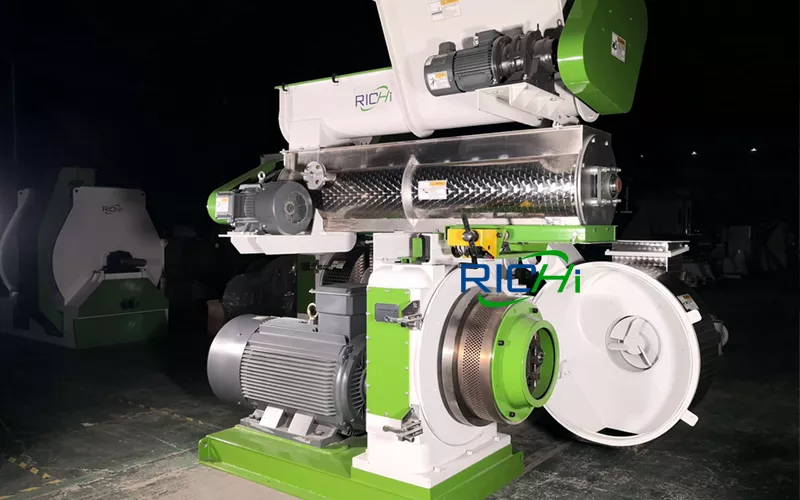

wood pelletizer machine

What is wood pelletizer machine?

Wood pelletizer machine is new energy equipment for wood waste and biomass waste. It is a wood waste pellet machine for commercial business. It uses eucalyptus, birch, poplar, fruit, bamboo, crop straw, and other biomass materials as raw materials, through crushing, drying, pelleting, cooling, packaging, and other processes to produce finished wood pellets. Its finished pellets are used in biomass power generation, industrial boilers, fireplaces, household barbeque, etc.



How does a wood pellet machine work?

The powdered raw material enters the pelleting chamber of the wood pellet mill through the conditioner, is mechanically compressed under the action of high temperature and high pressure, and then polymerized and molded through the ring die hole, and finally cut into the required length by the cutter. This process is called pelletizing.



wood pelletizer machine

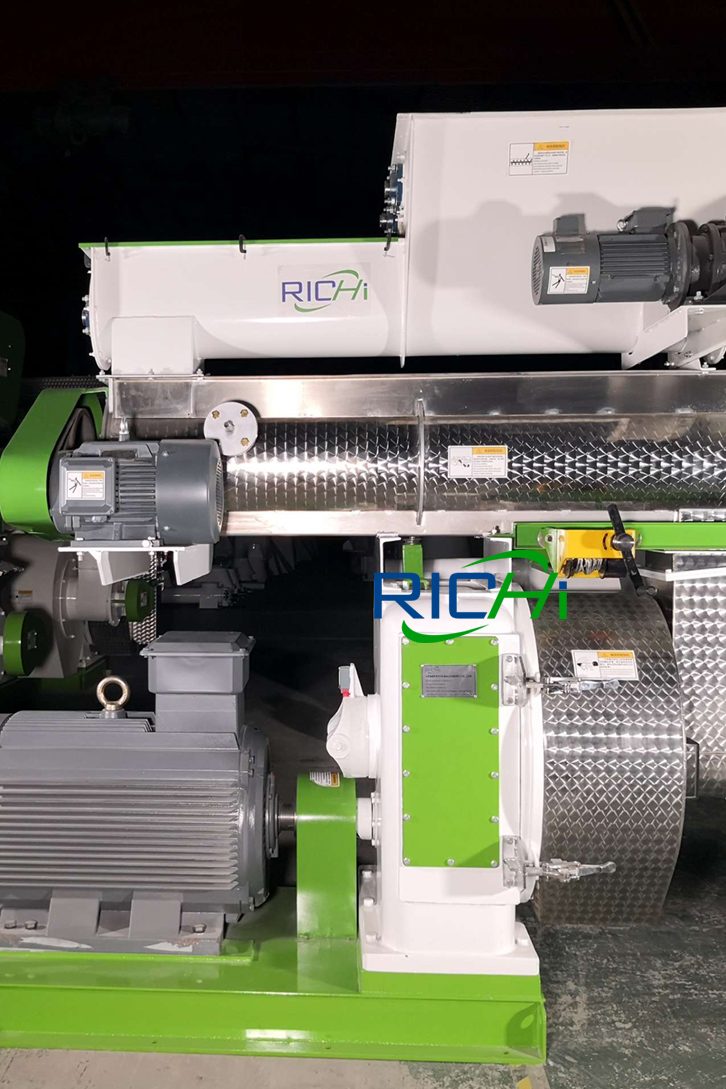

wood pelletizer equipment

How much does a pellet mill cost?​

RICHI is a professional wood pelletizer equipment manufacturer, and we need to talk to our customers who want to build wood pelleting plant or enter the pelletizing industry for the first time.

Generally, the deciding factor of the wood pellet machine price is the output, but different raw materials also restrict the output. For example, for the same wood pellets line, the production of grass-based raw materials is higher than that of sawdust-based raw materials. Different raw materials require pre-treatment processes, such as wood chipping and crushing. With different displays and different natural material processing, we can design various wood pelleting process schemes and configurations to ensure that it is the most suitable for customers.

So the very important for us is, what are your raw materials and the expected pellet output? Then contact us for wood pelletizer prices and customized wood pellet production lines.

How does a wood pellet machine work?

Customers ask us how to build a wood pellet plant? In fact, if the following key issues are clarified, the investment in the pellet production line will become simple.

  1. Raw materials. The raw materials determine the development direction of the pellet factory, such as the grass pellet production line or EFB pellet production line.

  2. Production capacity of the plant. Clarify the amount of raw materials that can be received every day, investigate whether there are similar pellet manufacturers in the surrounding market, including their output, and examine the current market size and development prospects. Through this series of commercial investigations, the scale of the pellet production line can basically be clarified.

  3. Land and electricity. Electricity is definitely the standard for industrial electricity. In addition to meeting the requirements of the production line, the size of the land also needs to reserve employee office areas, raw material storage areas, and finished pellet storage areas.

  4. Choose and purchase complete sets of wood pelletizer equipment. This is the simplest and most testing step. Buying good equipment and finding the right wood pellet mill supplier can make project operations more effective. Therefore, please note that you must choose a wood pellet machine manufacturer that truly has program design capabilities and overseas installation guidance experience, and sincerely solves customer problems.

wood pelletizer equipment

RICHI Wood Pelletizer For Sale

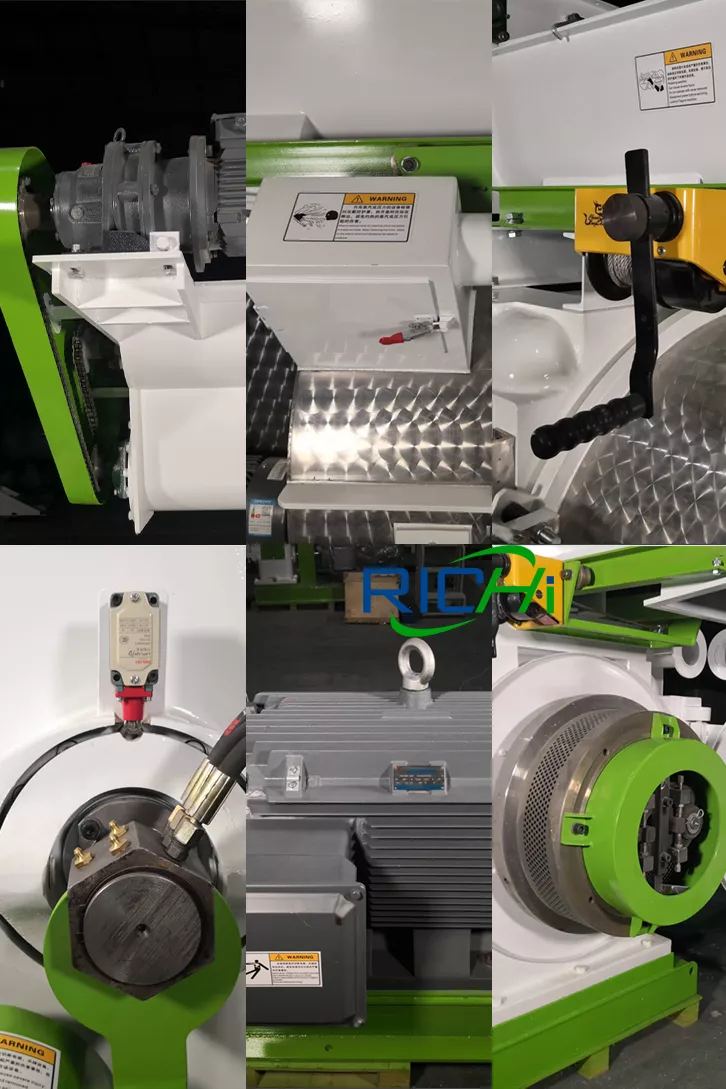

Prevent

Connected to the air duct, there is a mesh in the box to prevent the finished pellets from overflowing

Frequency

Due to the characteristics of biomass raw materials, we have added a variable frequency feeder with anti-caking device

Motor

We promise that all motors use Siemens motors

Protect

Protect machine(Producting main shaft, rotor and ring die)

Lifting Device

This small lifting device can help user to replace the very heavy ring die and roller assembly

Ring Die

304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology

richi wood pellet machine

Startup Wood Pellet Mill Plans With RICHI

We provide professional wood pelletizer equipment, advanced wood pelletizing process technology, very competitive factory direct sales prices, and overseas installation team.

Find More Wood Pellet Machine Information

Wood Pelletizer Technical Parameter

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Anti-caking Feeder Power 1.5KW 1.5KW 1.5KW 2.2KW 3KW 3KW
Forced Feeder Power 0.55KW 0.55KW 0.55KW 0.75KW 1KW 1KW
Pellet Machine Power 37KW 55KW 110KW 160KW 250KW 280KW
Capacity(wood sawdust,biomass) 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
Capacity(grass,straw) 600-800KG/H 800-1000KG/H 1.5-2 T/H 3-4 T/H 5-7 T/H 8-10 T/H
Capacity(organic fertilizer) 1-2 T/H 3-4 T/H 5-6 T/H 7-8 T/H 9-10 T/H 10-12 T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Dimension(mm) 2200*900*1300 2500*1100*1600 2800*1150*1730 3000*1260*1860 3300*1500*2000 3500*1600*2180

Wood Pellet Machine Video

Looking for a reliable wood pellet mill manufacturer? We supply portable wood pelletizer, ring die wood pellet machine for industrial production.

RICHI also supply complete wood pellet production line that is designed for commercial wood pelleting plant to make biomass pellet from any type of agro and forestry waste with customized capacity.

As China renowned wood pellet mill manufacturer, we have complete range of ancillary equipment for your wood pelleting plant. Full stock of pellet mil spare parts are available.

More Product About RICHI Machinery

Find More Wood Pelletizer Machine For Sale

  • Power: 380volt, 37kw, 50hz
  • Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
  • Pellet size: 6-12mm
  • Power: 380volt, 55kw, 50hz
  • Application:Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
  • Pellet size: 6-12mm
  • Power: 380volt, 110kw, 50hz
  • Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
  • Pellet size: 6-12mm
  • Power: 380volt, 160kw, 50hz
  • Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
  • Pellet size: 6-12mm
  • Power: 380volt, 250kw, 50hz
  • Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
  • Pellet size: 6-12mm
  • Power: 380volt, 280kw, 50hz
  • Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
  • Pellet size: 6-12mm
