Wood Saw Dust Pellets Production Line For Sale
- Best Quality & Competitive Factory Price.
- Full Support on Oversea Installation and Training.
- Your Premier sawdust pellet production line Supplier in China.
RICHI Machinery is a professional manufacturer and supplier of saw dust pellets line in China. We have sold sawdust pellet production lines to more than 110 countries, including the United States, Canada, Australia, New Zealand, the United Kingdom, Angola, Greece, Sweden, and South Africa.
Sawdust Pellet Production Line
- Reasonable scheme design can save investment to the greatest extent and improve production efficiency.
- Can adapt to a variety of raw material pellet production programs.
- High degree of automation, only 2 people are required to operate. Material transportation can be achieved by human power or conveyors.
- Compared with similar equipment manufactured by other manufacturers, RICHI’s sawdust pellet production line has higher technical content. For investors, this is the ideal choice.
Wood Sawdust Pellet Production Line
1-40TPH<Can Be Customized>
<According To The Whole Pellet Line>
Necessary Equipment For Complete Sawdust Pellet Production Line

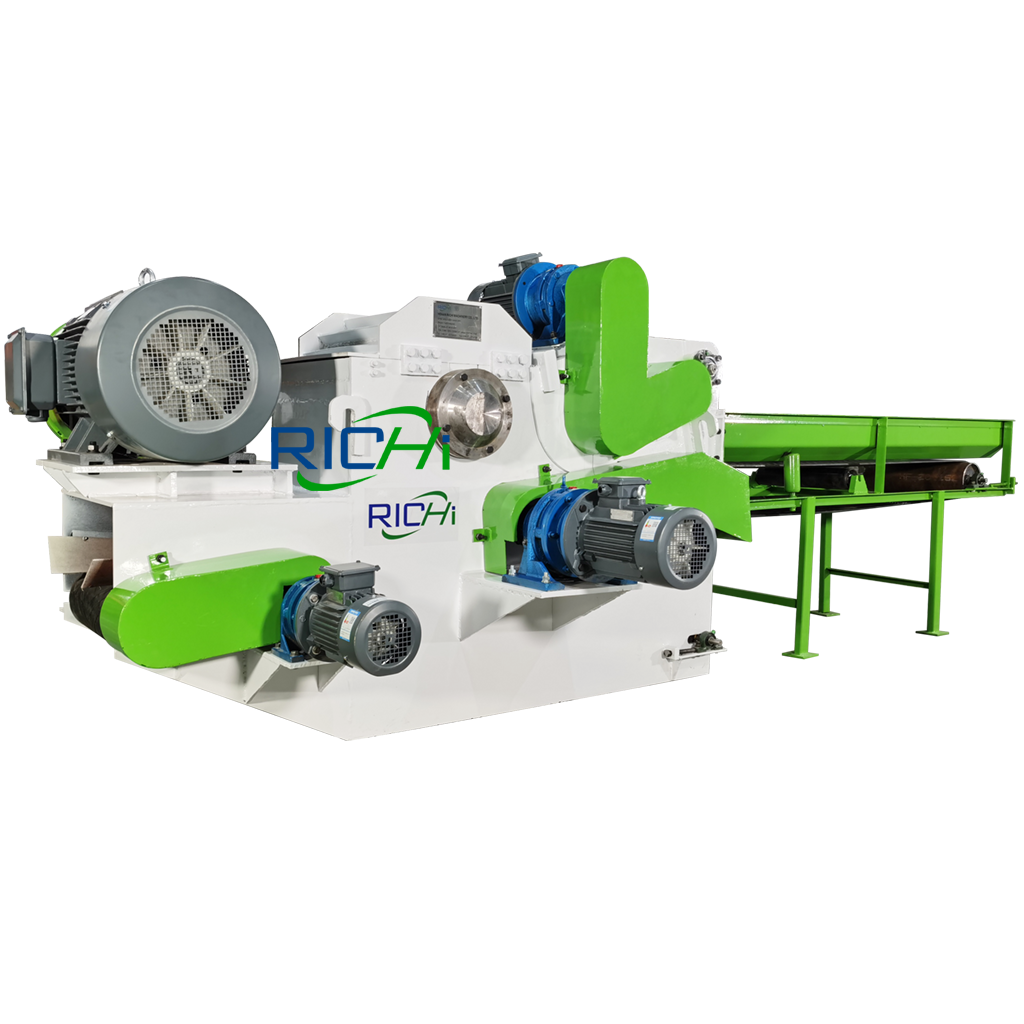

- Model: W-Drum-215/ W-Drum-216/ W-Drum-218
- Capacity: 3-5T/H, 8-10T/H, 14-18T/H
- Raw Materials: Wood Log/Branches/Pallet/Block/Bamboo, etc.
- Main Application Scenario: pre-treatment section of wood sawdust pellet production line

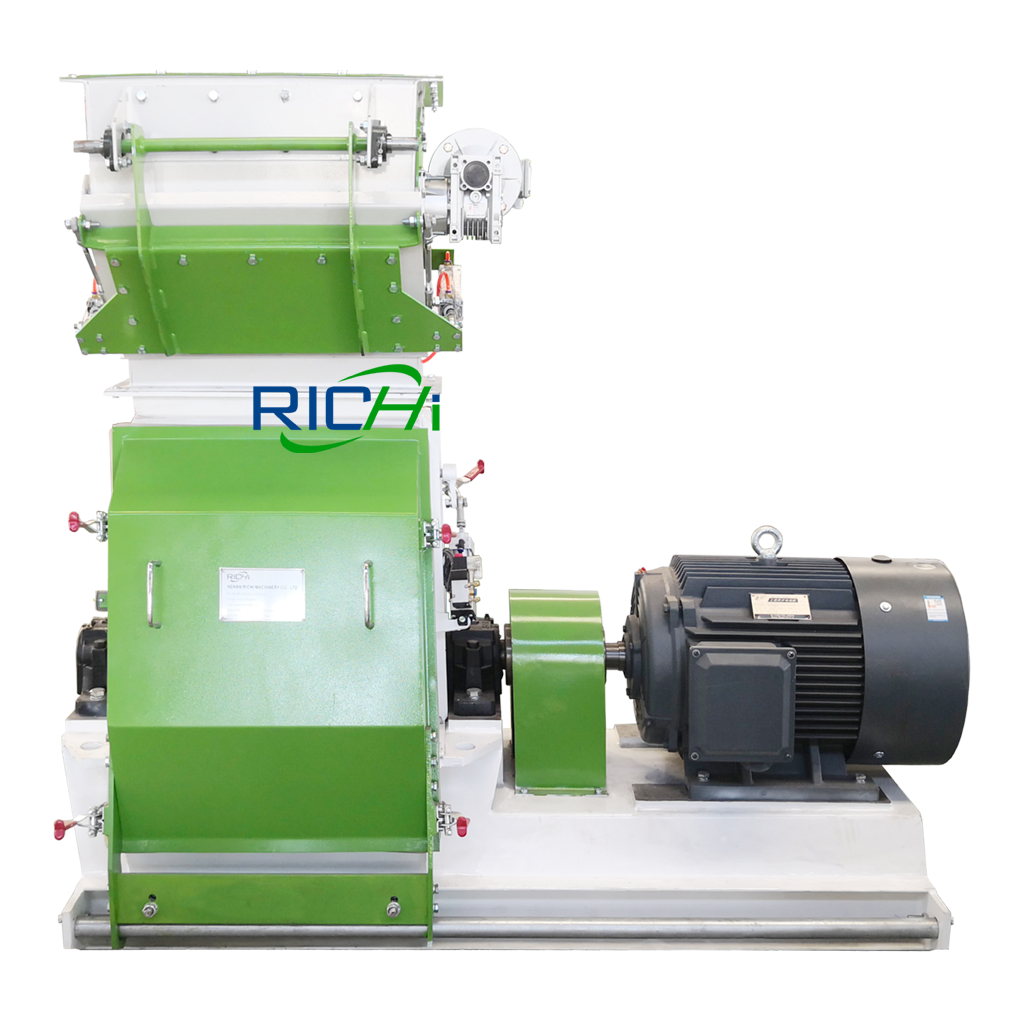

- Model: SFSP56*40/SFSP66*60/SFSP66*80/SFSP66*100
- Capacity: 3-5T/H, 6-9T/H, 10-13T/H, 12-16T/H
- Raw Materials: Wood Chips
- Main Application Scenario: raw material crushing section of wood sawdust pellet production line

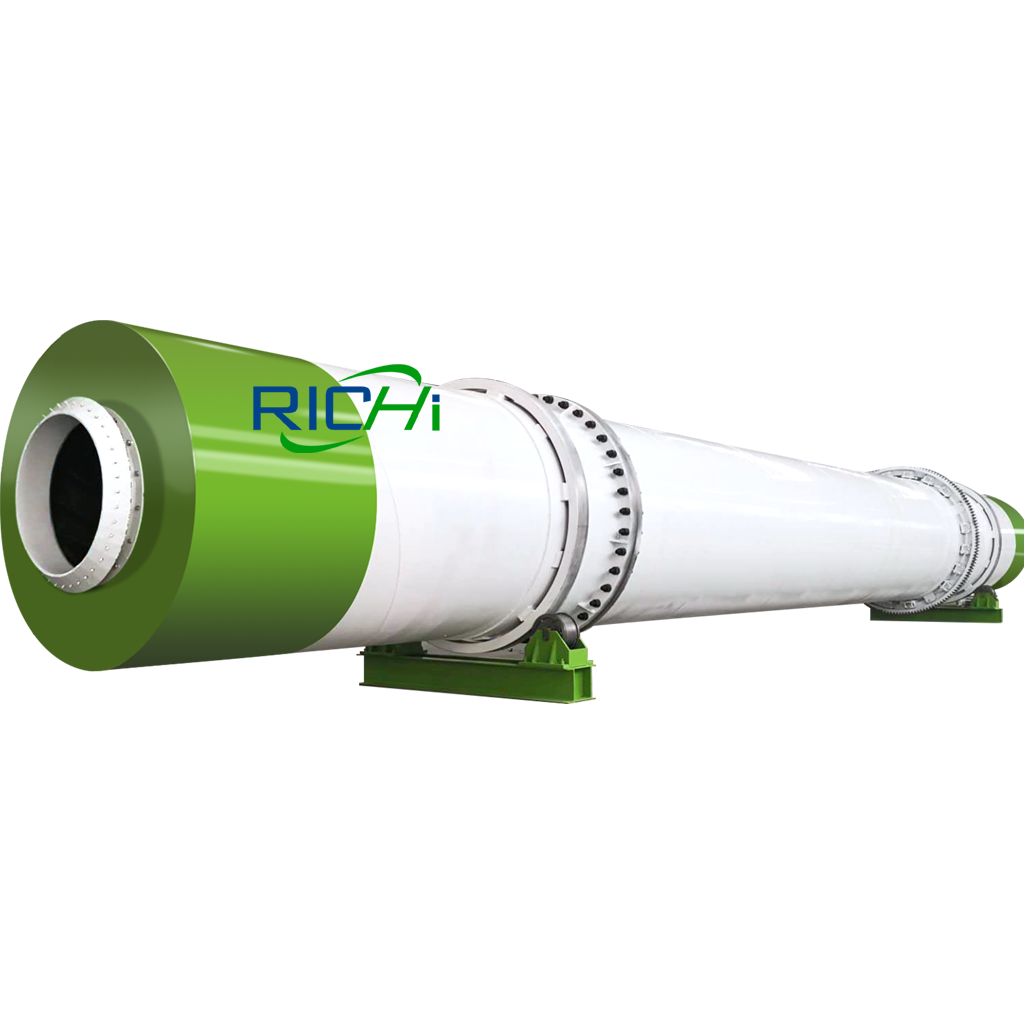

- Brand Name: RICHI Sawdust Dryer Machine
- Model: ф1200*120000, ф1500*150000, ф1800*180000, ф2400*100000, ф2400*100000*3
- Application: Applicable to low-temperature continuous drying material in large quantity, such as sawdust, wood chips, grass, dregs and etc.
- Main Application Scenario: raw material drying section of wood sawdust pellet production line

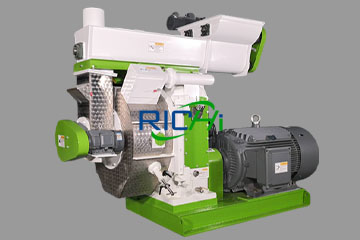

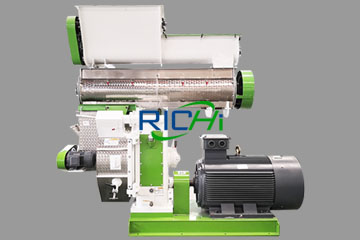

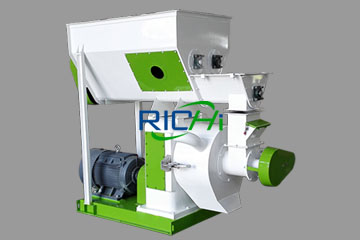

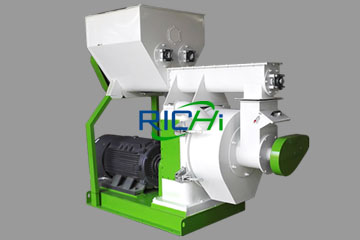

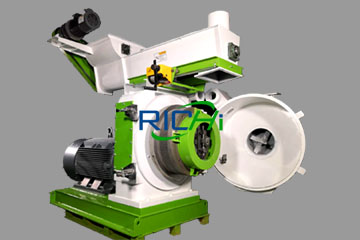

The wood pellet machine is the core production equipment of the wood sawdust pellet production line. It consists of feeder, conditioner, pelletizing chamber, ring die and pressure roller, core shaft, motor and other components, which play a decisive role in pellet quality and output.
- Power: 30-300KW
- Capacity: 0.5-10T/H
- Pellet Size: 6-12mm
- Model: SKLN11*11, SKLN14*14, SKLN17*17, SKLN20*20, SKLN24*24
- Capacity: 1.5-2T/H, 3-5T/H, 5-8T/H, 9-12T/H, 13-18T/H
- Application: Cooling of high temperature pellet after pelleting
- Main Application Scenario: wood sawdust pellet production line post-processing section

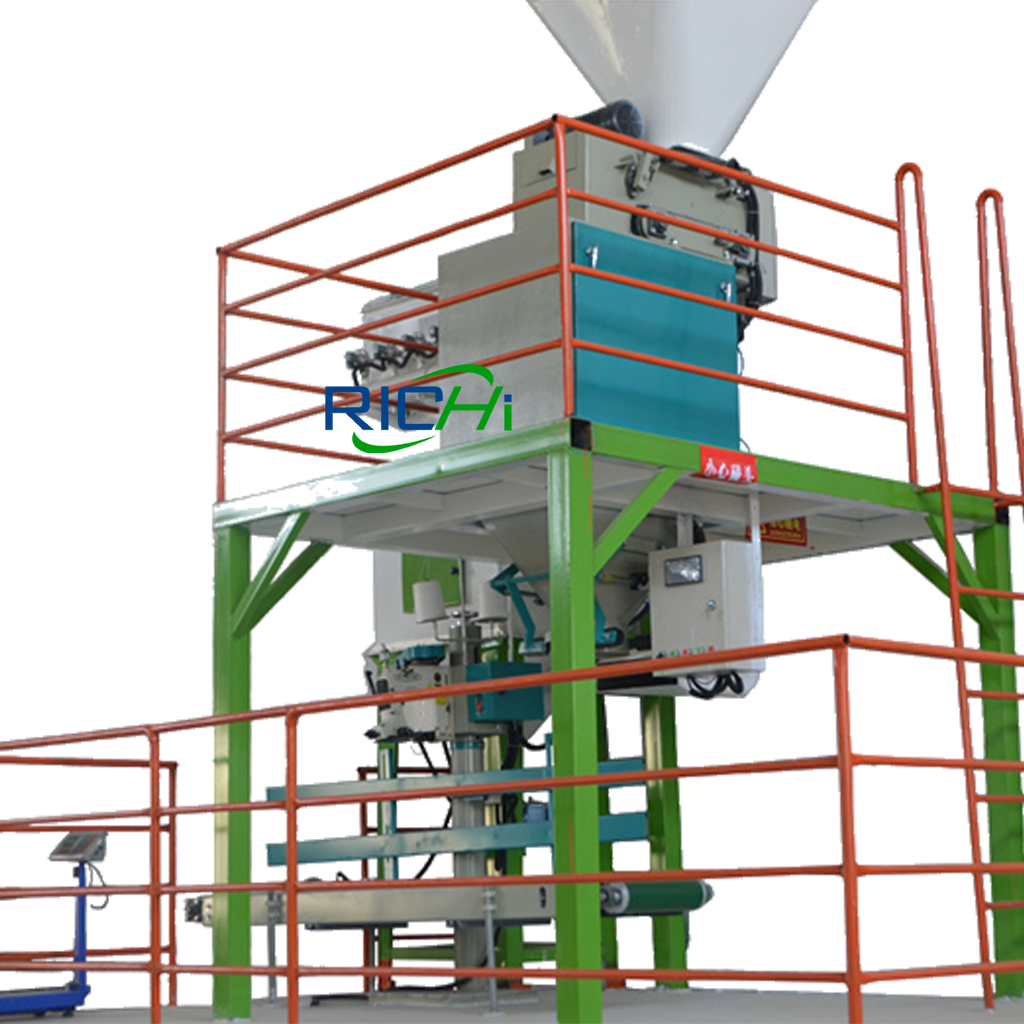

- Brand Name: RICHI Wood Pellet Packing Machine
- Model: DCS-C50/D, DCS-A50/D, DCS-B50/D, DCS-B50/S, DCS-A50/Y
- Application: Mainly used in pellet production line. As the last step of the equipment, the finished product is packaged for storage and transportation.
- Main Application Scenario: finished product packaging section of wood sawdust pellet production line
Welcome to Visit RICHI Machinery
Wood Sawdust Pellet Production Line For Sale, Wood Sawdust Pellet Machine Manufacturer in China
RICHI Wood Sawdust Pellet Production Line For Sale
The main machine of complete sawdust pellet production line is wood chipping making machine, wood sawdust making machine, sawdust drying machine, wood sawdust pellet mill, saw dust pellets cooling machine, screen machine, packing machine. Different pelletizing solutions are available. Leave us a message, and we will design a reasonable sawdust pellet production line for you according to the needs and budgets. Learn more cost of pellet production line.
Saw dust pellets can be used as a new energy for power generation in lager power plants ; can be used for fireplace, BBQ, etc. ; can be used for boiler; provide comprehensive nutrition for crops; increase and renew soil organic matter. As a new environment- friendly energy, protect the environment , reduce pollution.
Different raw materials can be used in our pellet production line, for example wood log, wood chips, wood sawdust, rice husk, straw, palm shell, EFB, wet or dry grass, alfalfa, hemp, tire fiber, organic fertilizer, waste paper, and so on.

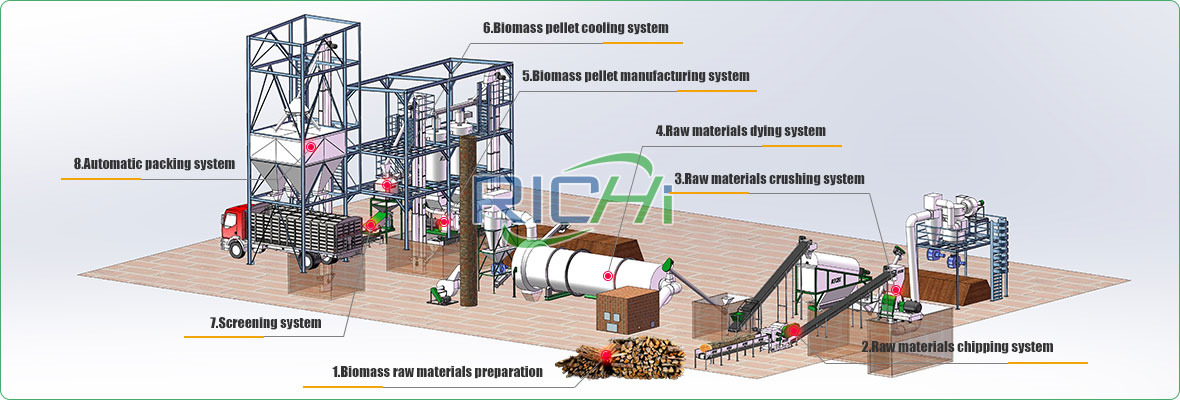

3D Pellet Plant Process Flow Chart
Our sawdust pellet production line have spread all over the world.
Our sawdust pellet production line can process many kinds of materials
RICHI complete wood pellet plant for sale, which can pelletizing wood log, wood branch, wood shavings, wood sawdust, bamboo, pine, birch, various hardwoods and softwoods.
Until now, we have established many wood sawdust pellet production lines around the world. Our customers are distributed in the United States, Canada, Britain, Russia, France, Greece, Angola, South Africa, Australia, Argentina, Mexico, Chile, Peru, Malaysia, Indonesia, Thailand, India, etc.
If you want to build a wood saw dust pellets factory, just contact us, tell us your raw materials and capacity requirements, and we can customize a complete sawdust pellet mill for you.
Video For Complete Sawdust Pellet Production Line
Core Equipment of Sawdust Pellet Production Line
RICHI can provide a variety of models of wood saw dust pellets making machines to meet the needs of different output. The following equipment is for reference only. If you want to know the actual pellet production line configuration, please contact us, or leave us a message including your contact information, raw materials, expected output, plant size and so on. Due to the time difference between China and you, we will contact you within 24 hours and send our plans, configurations and quotations.
Sawdust Pellet Production Line – The Related Guide
Sawdust Pellet Mill For Sale South Africa
The project is a 10 tons per hour customized automatic sawdust pellet production line with a competitive price. The customer’s main production raw materials are some waste wood, which is relatively large and contains impurities such as iron nails.
Therefore, if you want to make wood sawdust pellets, you must first slice and crush them. We have specially customized the cleaning section for customers, which can screen out iron nails, then directly slice and crush the waste wood, and then crush it again with a high-efficiency sawdust hammer mill to meet the granulation requirements.

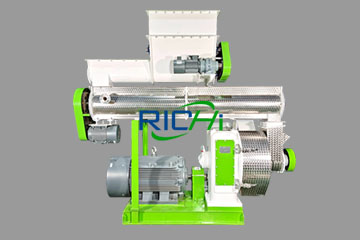

The core equipment of this sawdust pellet plant is three MZLH768 ring die sawdust pellet press, with a single sawdust pellet mill machine output of about 2.5-4 tons/hour and a power of 250kw. It is our high-performance pelletizing equipment, and it is also the sawdust pelletizing equipment recognized by customers all over the world.
Sawdust Pellet Making Machine in India
RICHI’s professional installation team helps customers install and solve problems in the installation process.
- We send two technical and installation engineers to guide the installation；
- After installation and commissioning, we have trained the customer’s workers how to operate the entire pellet production line；
- Train workers how to maintain and protect pellet production equipment;
- According to the characteristics, we will formulate a complete maintenance rule for you, including how to maintain, when to maintain, and who to maintain；
- Our company’s after-sales department will regularly call India customers to inquire whether maintenance is needed and give suggestions；
- In addition to wearing parts, our company provides 1 year free warranty and permanent free technical support.
Sawdust Pellet Mill For Sale Australia
In 2021.01.21, the contract was signed for the 2-2.5t/h customized wood sawdust pellet processing line project. The customer has just entered the biomass pellet fuel processing industry. During the negotiation, we learned that the customer had a negotiation with 12 wood sawdust pellet machine manufacturers. RICHI was the last to enter his list of cooperation, but eventually became the most trusted manufacturer of China’s wood biomass pellet production line by customers.
There are many reasons why customers choose RICHI. In addition to RICHI’s product quality and brand awareness in many regions, customers also value our full consideration of him. In addition, due to the limited budget of the client, in order to ensure the quality and service life of the equipment configuration of the entire wood sawdust pellet fuel production line, for the pre-treatment stage of wood sawdust, the client purchases second-hand equipment in nearby areas, such as (wood peeling equipment, wood splitting equipment).
In addition, this 2-2.5 tons per hour biomass wood sawdust pellet plant strictly complies with Australian electrical standards. The final sawdust pellet factory also equips each device with an emergency stop system and an independent power switch to ensure safe operation.
How To Make Wood Pellets From Sawdust
With the development of pelletizing technology, the production of sawdust pellets has become more and more simple, you only need to pay attention to the following points:
- Preparation of raw materials. If your raw materials are relatively large wood logs, then in the first step you need equipment that can peel and slice the trees; then use a shredder to crush the relatively large pieces of wood to sawdust below 5mm; if your raw materials are some forest waste, small branches, wood chips, etc., you can crush them directly without chipping.
At this time, attention should be paid to the moisture content of the raw materials, and then if the wood sawdust are too wet, it needs to be dried to a moisture content of about 8-12% (note: the moisture content can be tested with a moisture meter). If you only make small-volume pellets, you can spread the sawdust on the ground and let it air dry.
- The process of pelletizing. Start the wood sawdust pellet mill, and evenly send the sawdust into the hopper of the pellet mill machine through the conveying equipment. The rotating ring die and press roller squeeze the sawdust and force it through the die hole. The high pressure will make the pellets compact, and the high temperature will melt the lignin in the wood sawdust and become sticky. Therefore, the wood sawdust produced have high pellet density, smooth and even bright surface.
- After the pelleting is completed. The pellets just coming out of the sawdust pellet mill are very hot, so they must be cooled to room temperature before use or storage.
You can find that making pellets with sawdust is just an easy task! But sawdust pellets can save you a lot of costs, and even make you profit. So it is wise to buy a sawdust pellet mill now!
Can I Put Sawdust In A Pellet Stove?
Generally speaking, any stoves can be burned with sawdust. However, in modern society, stoves are divided into many types according to their use and fuel types. Therefore, the fuel of household pellet stoves is sawdust pellets or other types of pellet fuels, such as switchgrass pellets, cherry pits, and alfalfa pellets. On the one hand, the compressed pellets have more combustion value than sawdust; on the other hand, it is more convenient to use pellet fuel at home and there is no dust.
The fuel pellets of household pellet stoves are all made by sawdust pellet mill. This kind of pellet fuel is easier to store; it has a large calorific value; it does not contain sulfur and phosphorus and does not corrode the boiler; it is clean and hygienic, convenient to feed, and reduces the labor intensity of workers. Learn more about pellet maker for pellet stove >>
