Hay Pellet Machine

RICHI Machinery is a reliable manufacturer of hay pellet machine, providing hay pellet mill for sale with different capacity. If you are looking for a pellet machine to process hay into pellets, you have come to the right place! We are not only a professional hay pellet mill supplier, we also provide customers with professional pellet production solutions and guidance.

As a 27+ years of experience pellet machine manufacturer in China. We have sold the pellet machine to 120+ countries, including United States, United Kingdom, France, Australia, New Zealand, Ireland, Russia, Norway, India, Germany, Slovakia, Iran, Costa Rica, Bosnia and Herzegovina, Spain, Jordan, South Africa, etc.

hay pellet machine

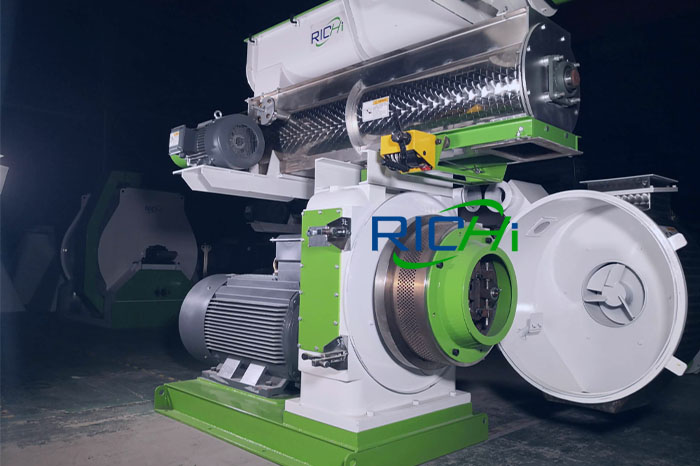

Hay Pellet Machine For Sale

Hay Pellet Machine For Sale

We are a professional hay pellet mill manufacturer and exporter in China. Customers all over the world choose us not only for our product, but also for our services. RICHI not only provide pellet mill for sale, but also provide our customers with a complete turnkey project on how to make hay into pellets.

What you get is not only RICHI Machinery but also a guarantee for your business. A good product with a good solution can better reflect our standards.

BRAND

RICHI ®

MODEL

MZLH Series

CAPACITY

300KG~5TON PER HOUR

POWER

37~300KW

RICHI Hay Pellet Machine
Made in China

In the pellet production industry, customers will always encounter some problems, such as: how to produce hay pellets, how to build their own pellet production plant how to select and purchase hay pellet mill, how to distinguish high-quality pellet machine suppliers, etc.
If you want to know some real conditions of pellet production equipment, you can follow our official channel-RICHI MACHINERY.

Follow Us:

Contact Us:

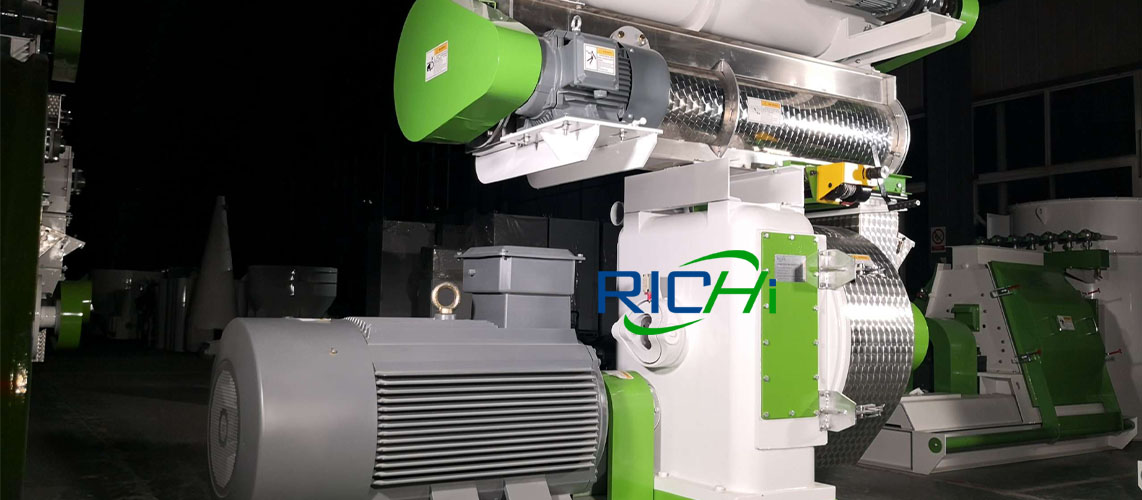

    Hay Pellet Mill Manufacturer - RICHI Machinery

    Hay Pellet Mill Manufacturer
    Many equipments are involved in the process of hay granulation, such as crushers and dryers for raw material processing; pelletizers; coolers for finished pellets; balers for final products; and so on. The hay pellet mill is the key equipment in the entire production process. It determines the quality, output, etc. So buying a good hay pellet machine and where to buy it are the key to your pellet business.

    As a professional hay pellet equipment manufacturer, RICHI has been working in pellet machine sales for many years and has rich experience. If you want to buy a pellet machine, then we can provide you with the most professional advice.

    The hay pellet mill is composed of a pellet machine frame, a large reduction box, a bearing chamber, a feeding cover, a discharging part, a motor, a pressure roller assembly, and a mold.
    The hay pellet machine is operated in a direct connection with a motor. The motor is connected to the shaft of the reducer through a gear coupling. After a 90° change of direction, the horizontal motor drives the vertical casting hollow transfer spindle, and the spindle drives the roller to roll the mold. The inner surface completes the pelletizing process.

    When pellet machine working, the material falls vertically from the feed inlet, and the material is continuously and uniformly distributed on the surface of the mold cavity (the contact surface between the pressure roller and the mold) through the rotation of the pressure roller, and the powdery material is crushed by the pressure roller holes through the mold (holes evenly distributed on the inner surface of the mold).

    In this process, the material is subjected to high pressure and high temperature to produce physical changes or appropriate chemical changes (according to the material), which promotes the powdery material to form a continuously elongated cylindrical solid body, and then the pellets are cut by a knife and discharged from the discharge port. The compaction process of the pellets is completed.

    RICHI hay pellet mill for sale, we have the following parameters, but when different raw materials are used, the capacity is different, and the related equipment that needs to be matched may also be different. Therefore, according to the requirements of raw materials and capacity, contact us for final guidance and suggestions.

    Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
    Anti-caking Feeder Power 1.5KW 1.5KW 1.5KW 2.2KW 3KW 3KW
    Forced Feeder Power 0.55KW 0.55KW 0.55KW 0.75KW 1KW 1KW
    Pellet Machine Power 37KW 55KW 110KW 160KW 250KW 280KW
    Capacity(wood sawdust,biomass) 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
    Capacity(grass,straw) 600-800KG/H 800-1000KG/H 1.5-2 T/H 3-4 T/H 5-7 T/H 8-10 T/H
    Capacity(organic fertilizer) 1-2 T/H 3-4 T/H 5-6 T/H 7-8 T/H 9-10 T/H 10-12 T/H
    Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
    Weight(KG) 2500 3500 4000 4500 5000 5500
    Dimension(mm) 2200*900*1300 2500*1100*1600 2800*1150*1730 3000*1260*1860 3300*1500*2000 3500*1600*2180

    Application Range of Hay Pellet Machine

    Application Range of Hay Pellet Machine
    In addition to hay, hemp, hops, forage, natural green grass, or other biomass raw materials can all be pelletized using a hay pellet machine.
    RICHI recommends that you tell us what your raw materials are before buying a pellet mill machine. According to the characteristics of the raw materials, we can recommend a more suitable pellet mill for you.
    We are not only a manufacturer of hay pellet mill for sale, we also provide customers with complete pellet production solutions, just tell us your raw materials and expected output.

    Why Customer Choose RICHI Hay Pellet Machine

    Why Customer Choose RICHI Hay Pellet Machine
    • Anti-Arch Structure In Hay Pellet Making Machine

    On the top of the hay pellet machine with a anti-caking bin . Inside the bin, there have two rollers for breaking the hay to avoid raw materials becoming cake . And the bin can keep the pellet machine working more smoothly.

    • Hay Pellet Mill Force Feeder

    Because the hay is too light , so it is difficult to enter into the hay pelleting chamber , so we add a force feeder here to improve the efficiency of the hay pelleting process.

    • Hay Pelleting Chamber

    Optimized structure of the hay pelleting chamber ensures the uniformity of the material and maximizes the working potential of the hay pellet machine. Through the pressure between ring die and rollers, to make pellets. After pelleting , the hay pellets temperature is high about 70-80℃. And have 98% qualified pellets, 2% powder.

    • Ring Die And Press Roller

    This is the 304 stainless steel ring die, it determines the final sizes of the feed! For the ring die, it has the following data: “d”, which refers to the diameter of the ring die ; “h”, which the the depth of the hole, or you can say the thickness of the hole. (d/h=compression ratio).

    • Pellet Machine Cutting Device

    To control the length of final hay pellets , means through adjust the distance between cutter and ring die to get the different length of hay pellets.

    • Steam Discharging Outlet

    When the pellet machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of hay enter into the pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the pellet machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber.

    • Siemens Motors ,SKF Bearings

    Siemens electric motors are synonymous with quality, innovation and the highest efficiency. The high efficiency level reduces energy consumption and directly saves costs for users. High protection level to ensure the safety and reliability for users.

    Many Kinds Of Pellet Mill For Sale In RICHI

    Trusted RICHI Hay Pellet Machine For Sale

    26Years Experience of Manufacturing and Exporting

    26Years Experience of Manufacturing and Exporting

    “We have 26+ years’ experience of hay pellet mill machine, and have exported 110+ countries, such as USA, Canada, Indonesia, Australia, Netherlands, New Zealand, Greece, Italy, Angola, South Africa, Turkey, UK, Germany, Malaysia, Thailand and so on.”

    Full Set of Certification

    Full Set of Certification

    “RICHI has pass through the CE&IOS 9001 Certification, All the hay pellet machine for sale has tested before delivery.”

    Support Delivery Anywhere in The World

    Support Delivery Anywhere in The World

    “RICHI Machinery can ship the hay pellet making machine to your port in your country, we supply the FOB & CIF Price. Just contact us for more details.”

    Full Support on Installation &Training

    Full Support on Installation &Training

    “We provide complete hay pellet machine for sale, installation at the customer’s local area and promise to train – ‘how to make hay pellets with hay pellet mill’ until the customer is proficient in operating the pelletizing system.”
